Dual-Cam AI Tracking PTZ Camera
SDC0G5- B20

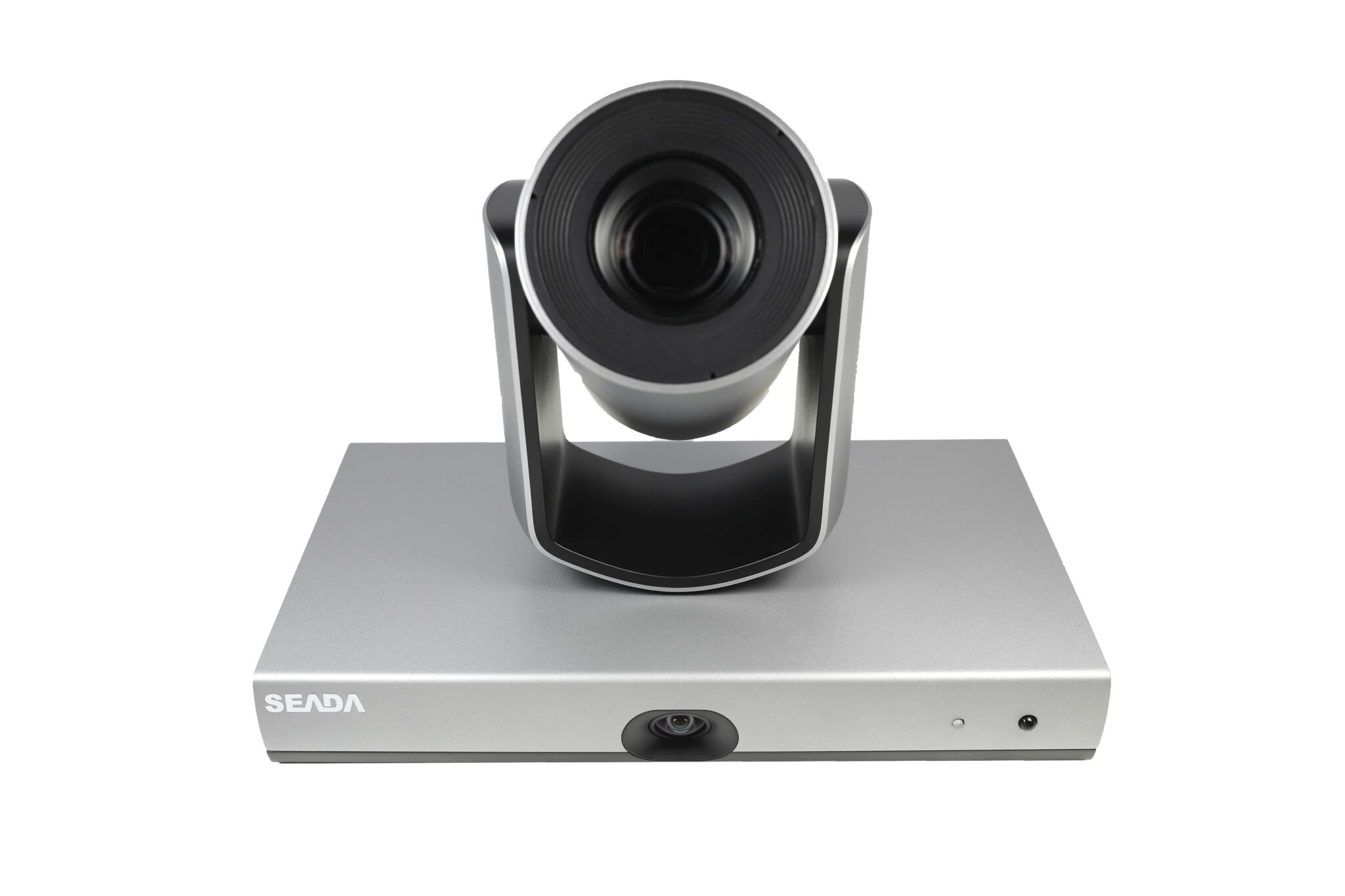

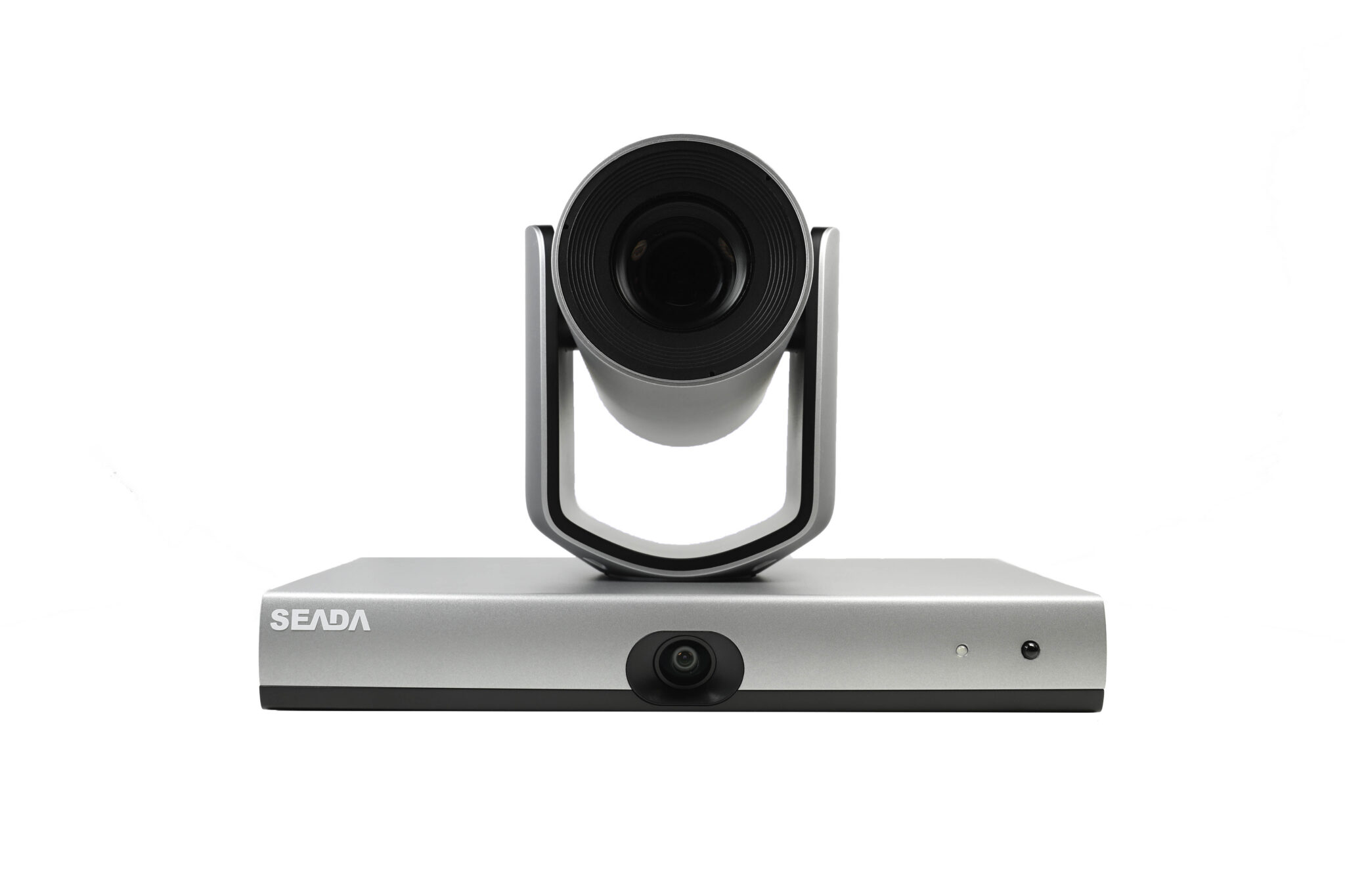

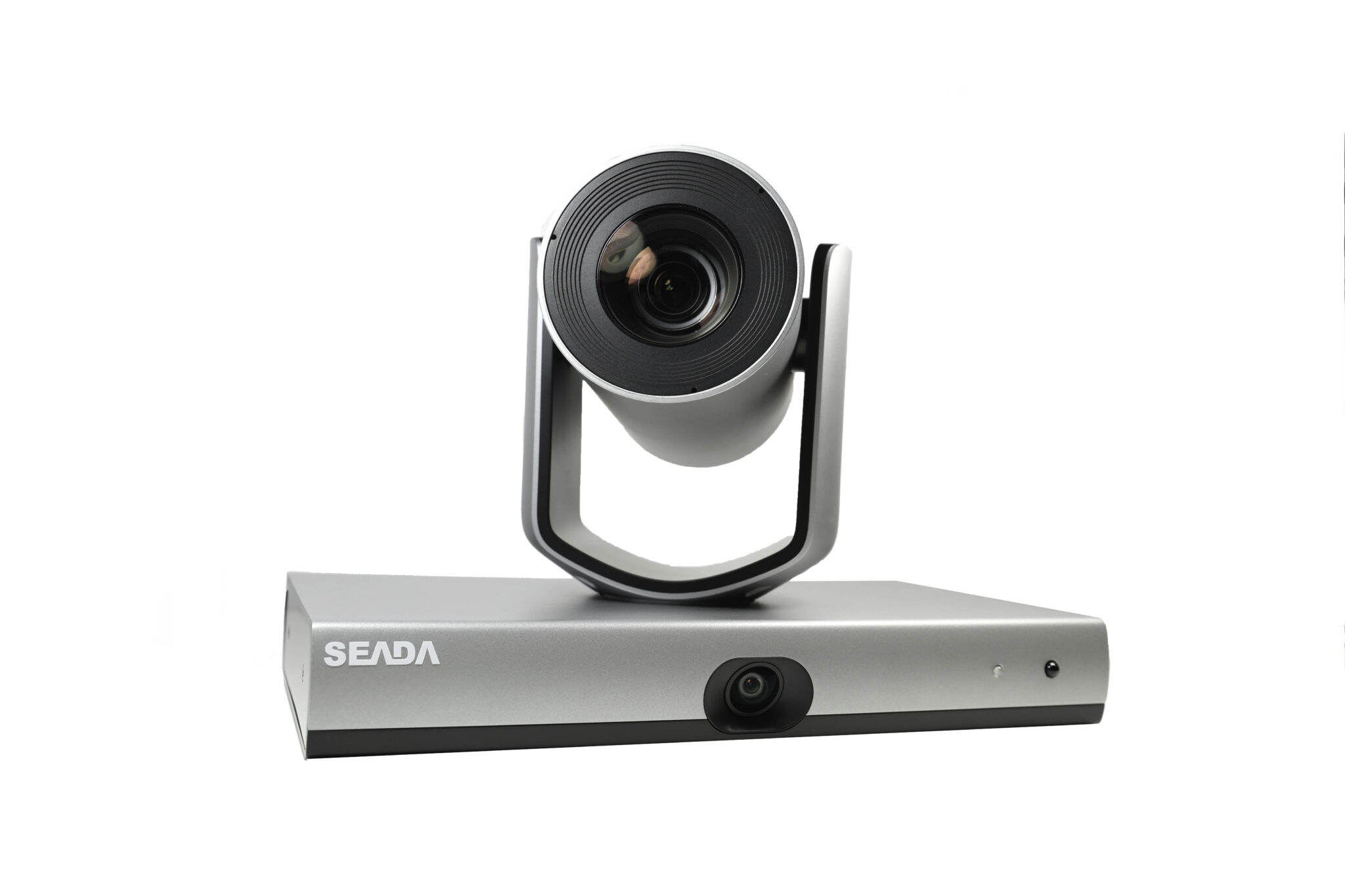

The SDC0G5 4K60 Dual-Cam AI Tracking PTZ Camera features a high-quality 1/2.8-inch CMOS sensor and UHD lens, delivering 4K@60 video. With up to 30x optical zoom, it captures clear and detailed images even in large spaces or long-distance scenarios.
Key Features
- Support dual-camera AI tracking system
- Support wide-angle detection + PTZ tracking
- Support 4K UHD video up to 60fps
- Support 1/2.8″ high-quality CMOS sensor
- Support up to 30× optical zoom
- Support AI auto framing function
- Support lecturer tracking mode
- Support gesture control tracking
- Support HDMI / SDI / USB video outputs
- Support RTSP / RTMP / ONVIF streaming
- Support optional NDI®|HX3 protocol
- Support VISCA / Pelco-P / Pelco-D control
- Support Power over Ethernet (PoE)
- Support Web UI remote management
- Support high-precision pan-tilt control
The SDC0G5 4K60 Dual-Cam AI Tracking PTZ Camera features a high-quality 1/2.8-inch CMOS sensor and UHD lens, delivering 4K@60 video. With up to 30x optical zoom, it captures clear and detailed images even in large spaces or long-distance scenarios.
The camera adopts an innovative dual-camera AI tracking design, combining a wide-angle camera for subject detection and a PTZ zoom camera for precise tracking and close-up capture. This allows the system to maintain stable and accurate tracking while delivering high-quality framed shots.
Supporting HDMI, SDI, USB and IP streaming, including RTSP, RTMP, ONVIF and NDI®|HX3, the camera integrates easily into professional AV systems. PoE power and Web UI management make installation and configuration simple and efficient.
| MODEL NAME | SDC0G5-B20 |
| SENSOR | 1/2.8-inch high-quality CMOS sensor |
| EFFECTIVE PIXELS | 16: 9 aspect, 8.46 MP |
| RESOLUTION |
HDMI: Up to 3840 x 2160 at 60 fps RJ45 (RTSP, RTMP, VISCA Over IP, ONVIF, SRT): Up to 3840 x 2160 at 60 fps SDI: Up to 1920 x 1080 at 60 fps |
| FOCAL | F= 5.2MM ~ 106MM |
| FULL VIEW CAMERA: F=2.8MM | |
| IRIS | F1.6~F3.5 |
| FULL VIEW CAMERA: F2 | |
| OPTICAL ZOOM | 20X |
| FULL VIEW CAMERA: H:9.4° V: 62° | |
| HFOV | 56.5° ~ 2.8° |
| PAN ROTATION | ±130°, 0.1° ~ 80°/s |
| TILT ROTATION | -30° ~ +90°, 0.1° ~ 60°/s |
| SHUTTER SPEED | 1/25s ~ 1/10000s |
| NOISE REDUCTION | 2D & 3D DNR |
| CAMERA CONTROL | VISCA/PELCO-P/PELCO-D |
| OPTIONAL NDI | YES |
| EXTERNAL POWER SUPPLY | DC12V/1.5A < 18W, PoE Supported |
| OPERATING TEMPERATURE RANGE | 0°C ~ +40°C |
| OPERATING HUMIDITY RANGE | 10%RH ~ 90%RH |
| STORAGE TEMPERATURE RANGE | -20°C ~ 60°C |
| STORAGE HUMIDITY RANGE | 10%RH ~ 95%RH |
| Dimensions (WxHxD) | 245mm×145mm×165mm |
