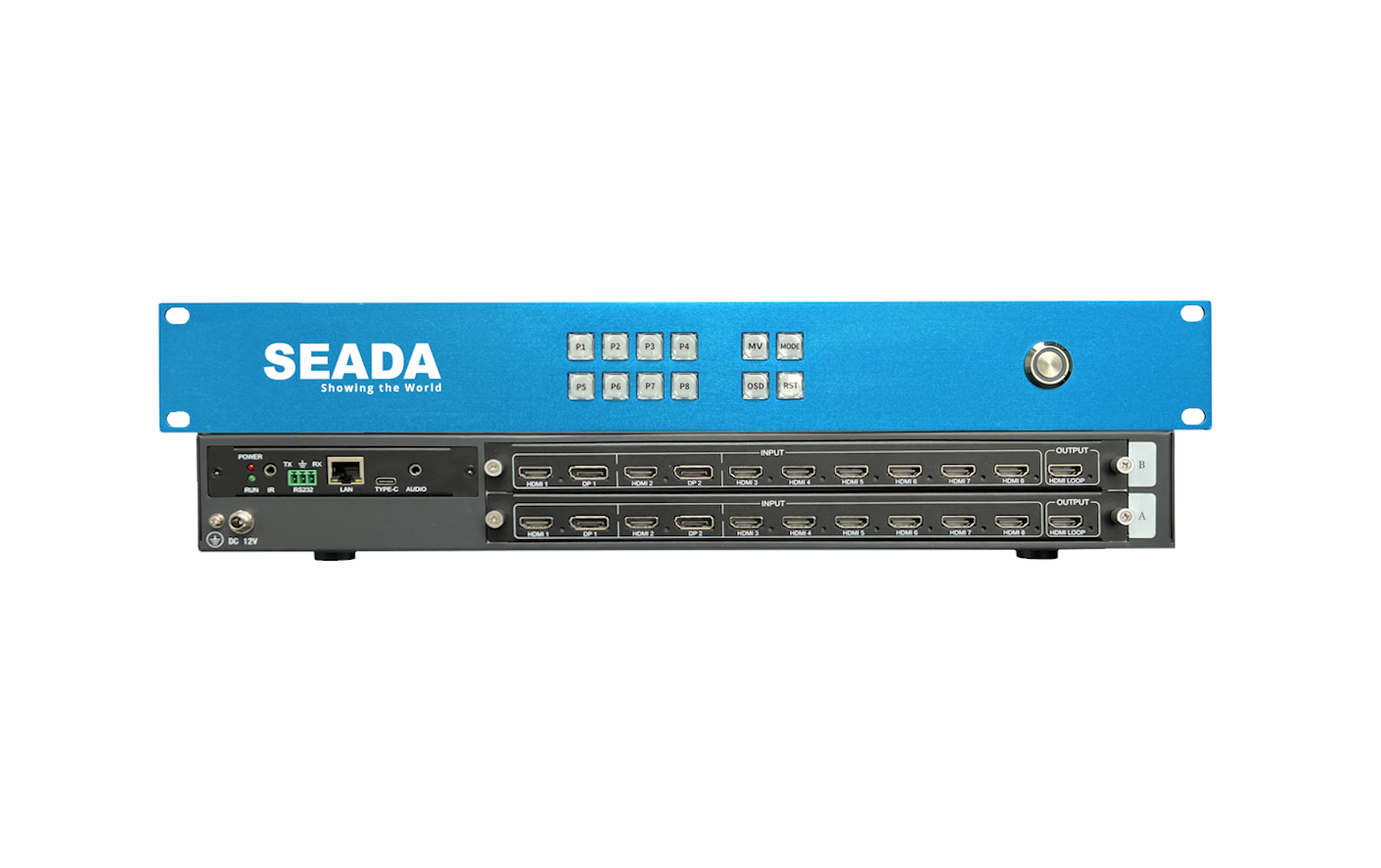

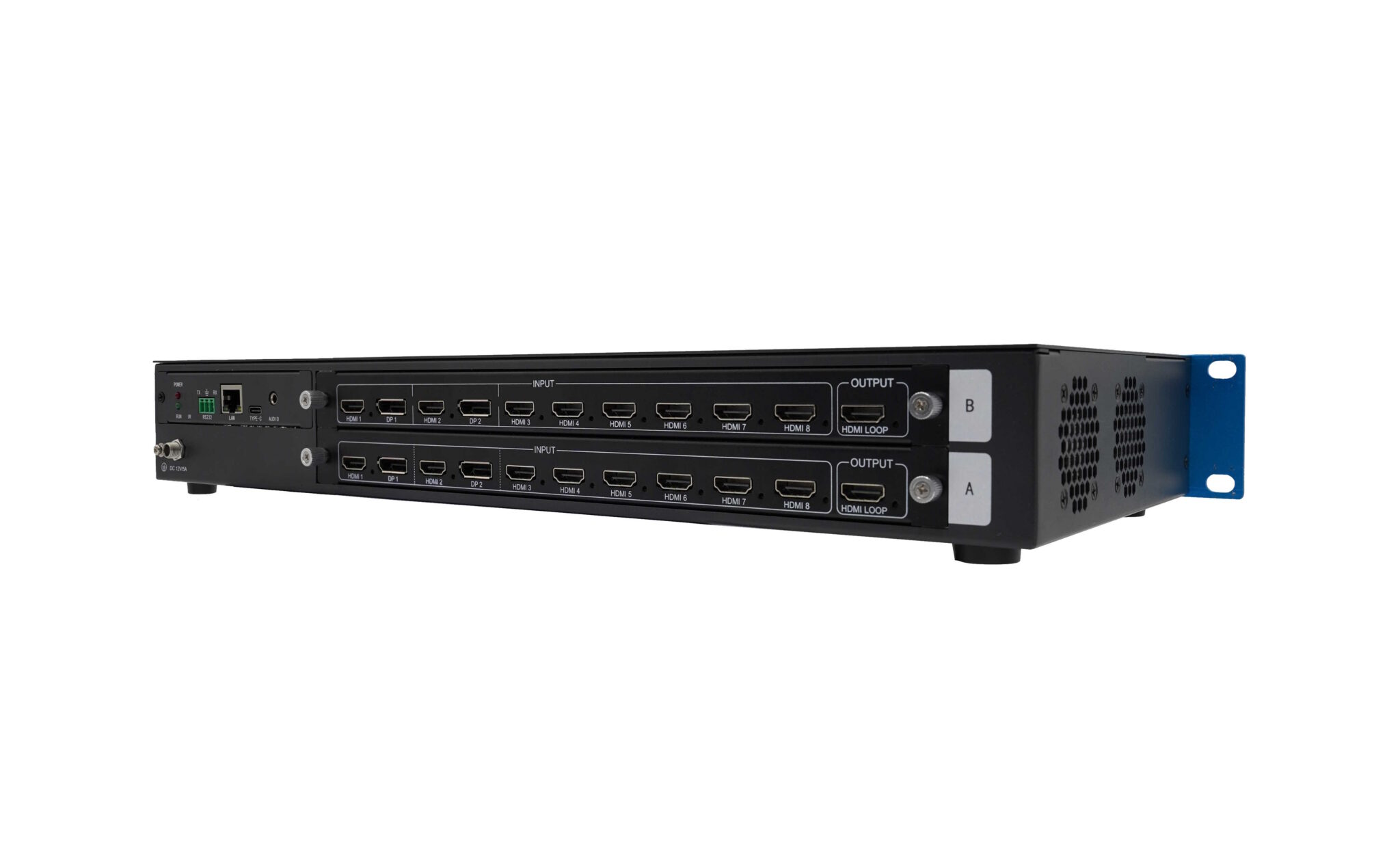

4K60 16 x 2 Multiviewer
SD-MV-CM1602 Multiviewers
This SD-MV-CM1602 4K60 16×2 Multiviewer UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.
Key Features
- Supports 16 video inputs and 2 simultaneous HDMI outputs.
- Eight inputs support up to 4K60; eight inputs support up to 1080P60.
- Output resolutions: 3840 x 2160P60, 3840 x 2160P30 and 1920 x 1080P60.
- Displays up to 16 input signals on a single display.
- Arbitrary segmentation layout based on a maximum 15 x 15 grid.
- Seamless input-source switching without black-screen interruption.
- Supports OSD, HDMI audio output and 3.5mm audio separation.
- Control via buttons, remote control, RS232 and Web GUI.
- Supports custom IP address and DHCP automatic allocation.
- Up to eight preset layouts can be stored and recalled
This SD-MV-CM1602 4K60 16×2 Multiviewer UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.
The SD-MV-CM1602 is a 4K60 multiviewer with 16 inputs and 2 outputs. It can display up to sixteen video inputs on two display devices with customised layouts at the same time. It supports seamless signal switching between different input sources and up to 8 preset layouts to be stored and recalled, providing flexible operation for a wide range of applications. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the 16 inputs on a single monitor.
It is suitable for security monitoring, broadcasting, video conferencing, industrial production and instrument monitoring.
| Dimension (WxHxD) | 440mm x 200mm x 60mm |
|---|---|
| Net Weight | 4Kg |
| Input Interface |
A IN1-4 / B IN1-4: 8 x HDMI 2.0 or 4 x HDMI 2.0 and 4 x DP 1.2 A IN5-8 / B IN5-8: 8 x HDMI 1.3 |
| Input Maximum Pixel Clock | 600MHz |
| Input Resolution |
A IN1-4 / B IN1-4: 3840 x 2160P60 A IN5-8 / B IN5-8: 1920 x 1080P60 |
| Interface Protocol | HDCP 2.2, HDCP 1.2 |
| Output Interface | 2 x HDMI 2.0 |
| Output Maximum Pixel Clock | 600MHz |
| Output Resolution | 3840 x 2160P60, 3840 x 2160P30, 1920 x 1080P60 |
| Color Depth / Format | 8bit / RGB444, YUV444, YUV422 |
| Audio | HDMI Audio Follow-On, 3.5mm Audio Separation |
| Control Method | Remote Control, Pushbutton, RS232, Web |
| Power supply / Consumption | 12V5A / 50W |
| Storage / Operating Temperature | -10~50°C / 0~50°C |
