SD-WP01B & SD-WP02B
SD-WP01B & SD-WP02B

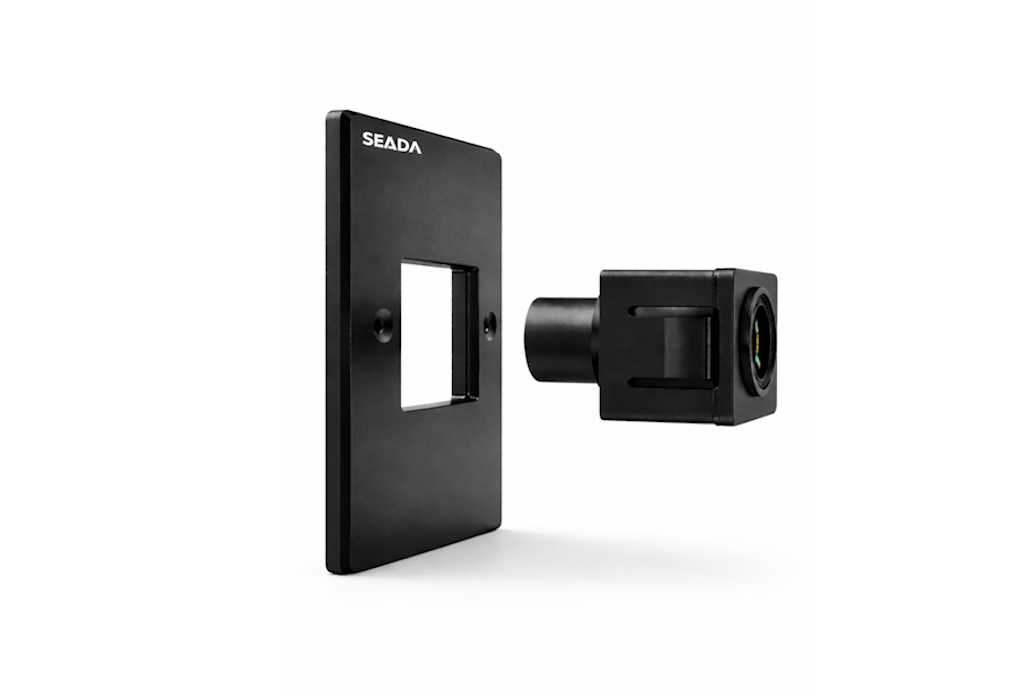

SD-WP01B & SD-WP02B are the modular UK 1-gang wall plates allowing flexible combinations of modules from the series. They are designed for both wall-mounted and light electrical box installations.
SD-WP01B & SD-WP02B are the modular UK 1-gang wall plates allowing flexible combinations of modules from the series. They are designed for both wall-mounted and light electrical box installations and are also widely used in renovation projects where plastic panels are replaced directly.
Each module can operate independently or as part of a combined setup, offering versatile configuration options tailored for on-site applications that require broad functionality and adaptability.
SD-WP01B & SD-WP02B can be widely used in video conferencing, education, receptions and so on.
| DIMENSIONS (W x H x D) | 86mm x 86mm x 5mm |
| MATERIAL | Aluminium with sandblasted finish |
| CONNECTOR FORMAT | HDMI/USB/RJ45/DVI/SDI/POWER etc, total 58 |
| OPERATING TEMPERATURE RANGE | 0 ~ +40℃ |
| OPERATING HUMIDITY RANGE | 10% ~ 90% non-condensing |
| STORAGE TEMPERATURE RANGE | -20 ~ 60℃ |
| STORAGE HUMIDITY RANGE | 10% ~ 90%, non-condensing |

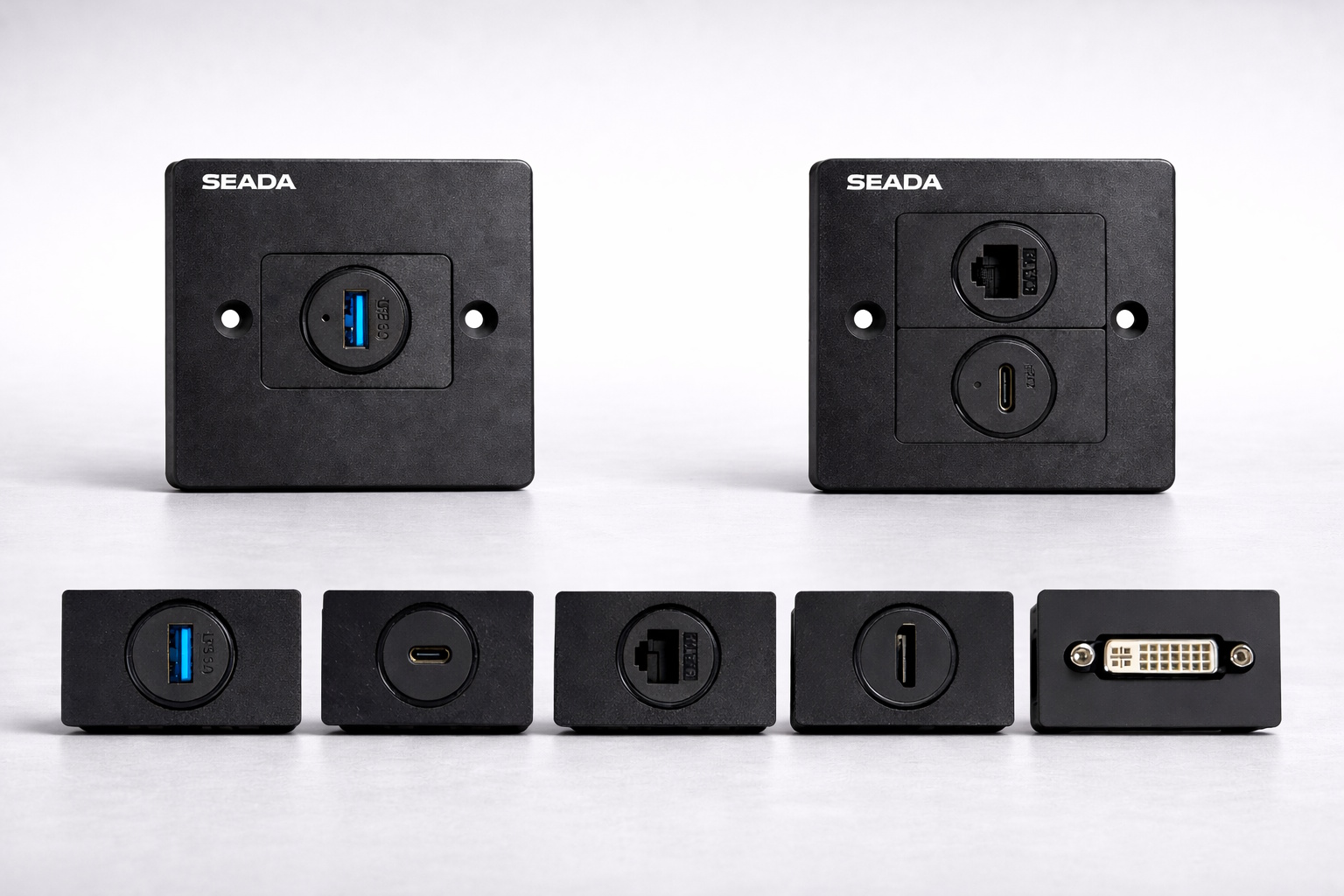

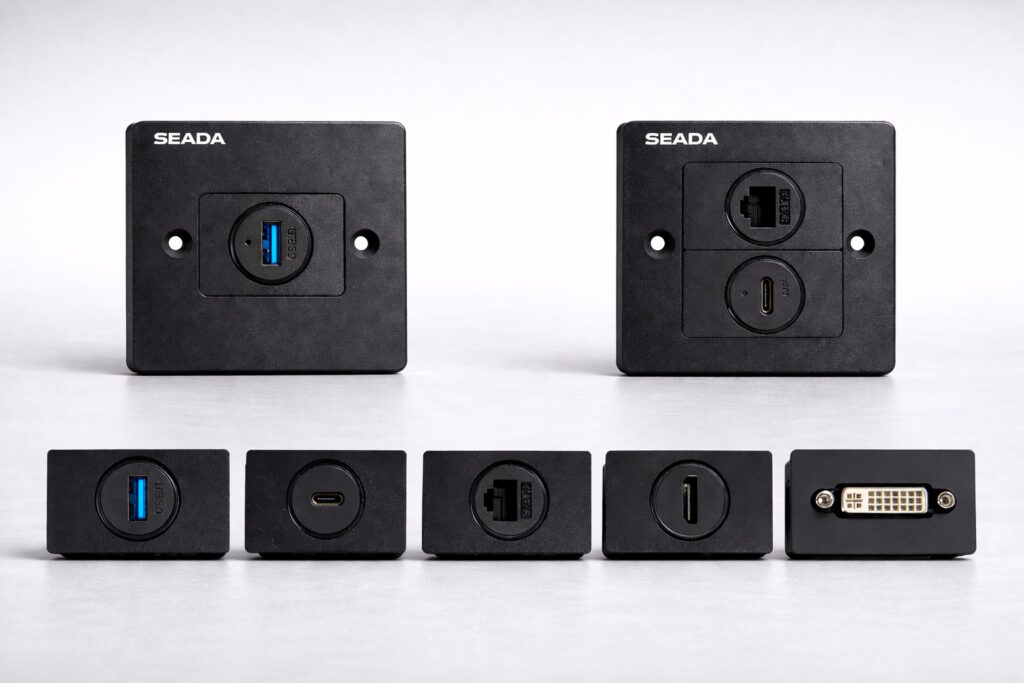

| MAIN MODELS | Description |
| SD-WP01B | Black sand blasted anodized aluminium UK 1-gang wall plate with one slot space |
| SD-WP02B | Black sand blasted anodized aluminium UK 1-gang wall plate with two slots space |
| SD-WP-U3 | Type A USB3.0 connectivity module |
| SD-WP-U3L | 90-degree Type A USB3.0 connectivity module |
| SD-WP-UC | Type C connectivity module |
| SD-WP-HDMI | Female to female HDMI connectivity module |
| SD-WP-HDMIL | 90-degree female to female HDMI connectivity module |
| SD-WP-DVI | DVI connectivity module |
| SD-WP-RJ45 | CAT6 Ethernet connectivity module |
| SD-WP-BPB | Blank slot plate |
