Genesis 1G – KVM Matrix
G1G
The G1G-HDMI Transceiver is a high-performance KVM over IP solution designed for real-time video distribution and workstation control over standard Gigabit Ethernet. Supporting up to 4K60 4:4:4, it combines dedicated video codec and KVM processing to deliver high-quality video with imperceptible latency.
Key Features
- Supports up to 4096×2160@60Hz with 4:4:4 colour sampling
- End-to-end KVM latency as low as 4 ms
- Dedicated video codec and KVM processing architecture
- Configurable TX / RX in one unit
- Supports single, dual & quad-view layouts and save & recall
- Supports Multi-screen KVM workstation
- Move & switch across multiple displays
- Supports multi-workstations
- Flexible user and permission management
- Supports videowall management from workstation
- Supports Internal communication & source sharing
- Supports centralised configuration and management
- Supports USB KVM extension and routing over IP with high OS compatibility: Windows, macOS, Android, Linux, etc.
- Supports audio embedding and de-embedding
- Supports real-time source preview
- Supports control via RS-232, IR and UDP
- Supports both DC and PoE for simplified installation
- Standard Gigabit Ethernet infrastructure
- OLED display for IP address and status
- No PC vulnerabilities
- Integrated environmental control
The G1G-HDMI Transceiver is a high-performance KVM over IP solution designed for real-time video distribution and workstation control over standard Gigabit Ethernet. Supporting up to 4K60 4:4:4, it combines dedicated video codec and KVM processing to deliver high-quality video with imperceptible latency. Each unit can be configured as either a transmitter (TX) or receiver (RX), providing a flexible and scalable architecture for system deployment and expansion.
Designed for demanding multi-workstation environments, G1G enables operators to monitor, access and control multiple sources across single or multiple displays. Flexible multiview layouts, intuitive move & switch operation, and layout save & recall allow each workstation to be configured around individual operational requirements. Multiple workstations can operate independently while sharing access to sources across the same network.
G1G provides a comprehensive KVM platform for professional control rooms, command & control centres and other mission-critical applications.

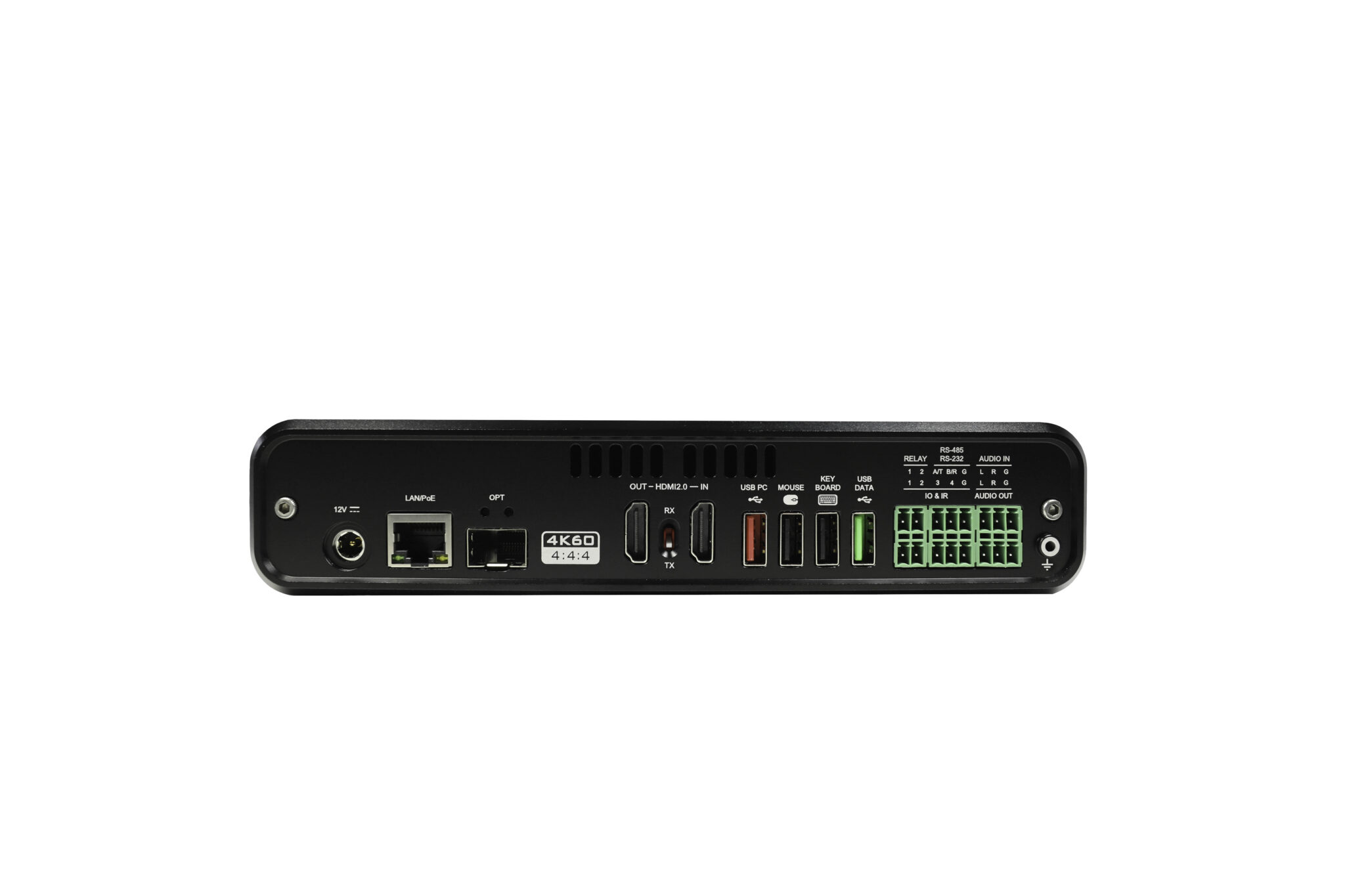

| VIDEO INPUT | 1 × HDMI 2.0: Up to 4096 × 2160 @ 60 Hz |
| VIDEO OUTPUT | 1 × HDMI 2.0: Up to 4096 × 2160 @ 60 Hz |
| VIDEO ENCODING | FPGA: Up to 1 × 4096 × 2160 @ 60 Hz; H.265: Up to 1 × 4096 × 2160 @ 60 Hz + 1 × 2048 × 1080 @ 60 Hz + 1 × 1024 × 540 @ 30 Hz; JPEG: Up to 1 × 1024 × 540 @ 30 Hz |
| VIDEO DECODING | FPGA: 1 × 4096 × 2160 @ 60 Hz / 4 × 2048 × 1080 @ 60 Hz; H.265: 1 × 4096 × 2160 @ 60 Hz / 4 × 2048 × 1080 @ 60 Hz |
| AUDIO ENCODING | 48 kHz sampling: PCM, G.711, AAC |
| AUDIO DECODING | 48 kHz sampling: PCM, G.711, AAC |
| AUDIO INPUT | HDMI embedded audio; 1 × single-ended stereo; 3-pin 3.5 mm Phoenix connectors |
| AUDIO OUTPUT | HDMI embedded audio; 1 × single-ended stereo; 3-pin 3.5 mm Phoenix connectors |
| SERIAL PORTS | 1 × RS-232 / 1 × RS-485: 3-pin 3.5 mm Phoenix connectors |
| RELAY | 1 × 24 V low-voltage relay: 2-pin 3.5 mm Phoenix connectors |
| I/O | 4 × 5 V: 5-pin 3.5 mm Phoenix connectors |
| IR | Shared with I/O |
| USB | 1 × USB 2.0 for PC USB; 2 × USB 2.0 for USB peripherals; 1 × dedicated USB 2.0 for USB pass-through |
| NETWORK | 1 × Gigabit RJ-45; 1 × 1G SFP |
| POWER | PoE: IEEE 802.3at; 12 VDC / 3 A |

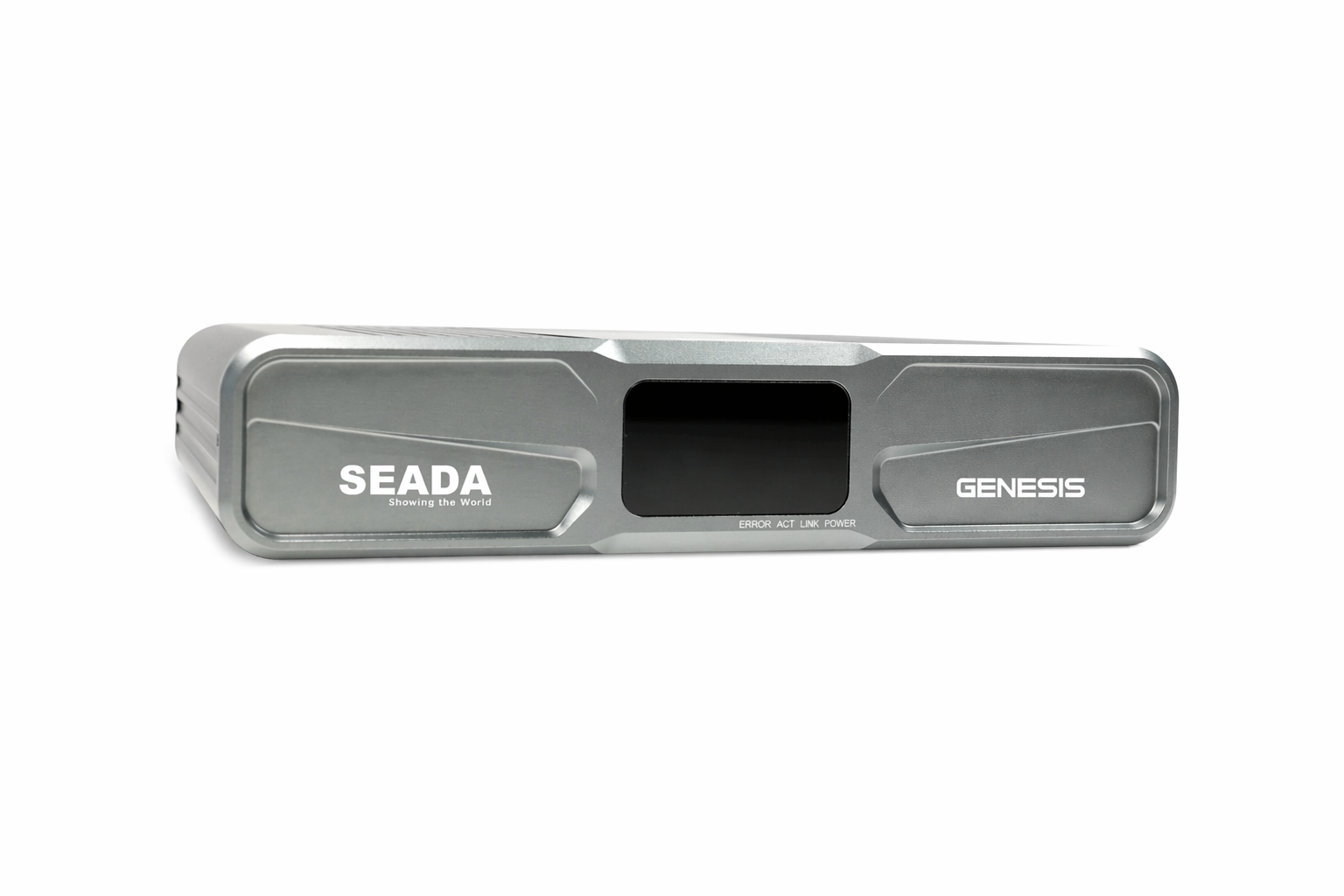

| OLED DISPLAY | White OLED: Displays IP address, device status, etc. |
| MODE SWITCH | Up: RX Receiver; Down: TX Transmitter |

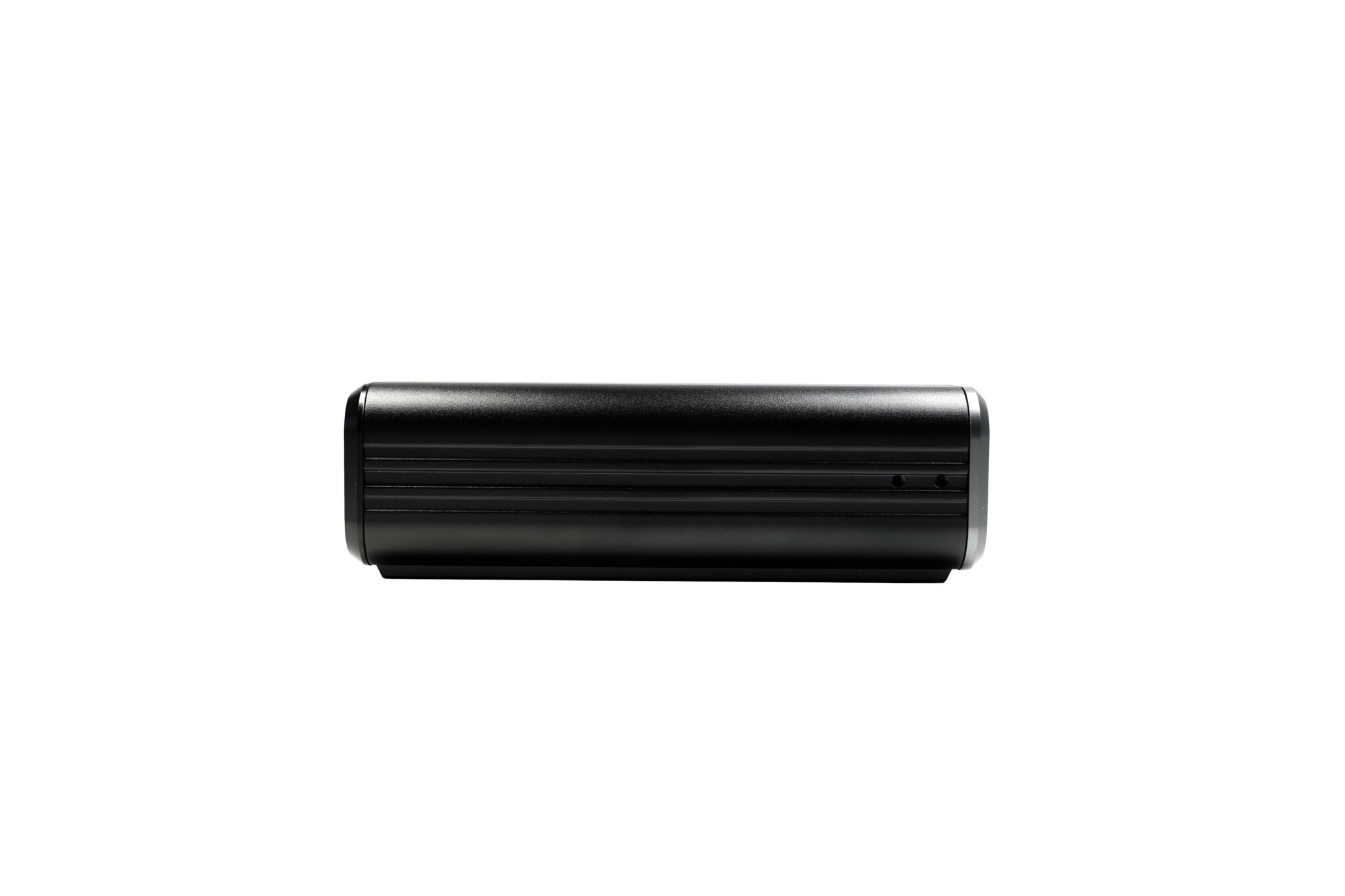

| DIMENSION | 210 x 150 x 48 mm |
| WEIGHT | 1.2KG |
| TEMPERATURE | 0 – 40°C |
| HUMIDITY | 10–90% RH, non-condensing |
