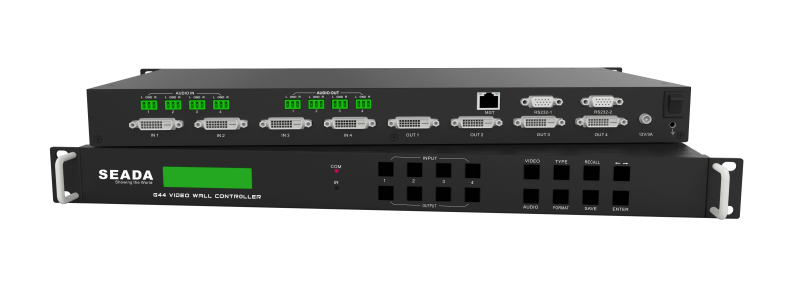

G44 DVI Video Wall Controller

G44 DVI

G44 DVI

The G44 DVI video wall controller accepts up to 4 HDMI/DVI/VGA/CVBS/YPbPr inputs and displays them on 4 different displays, each with a resolution up to1080p@60fps. G44 not only allows the user to display a single input across all four screens, but also to display different input videos onto different screens working like a matrix switcher.

Key Features

  • Four DVI-I inputs with embedded audio
  • Four DVI-I outputs with embedded audio
  • Supports both analog and digital inputs/outputs
  • Four analog audio inputs • Four analog audio outputs
  • Supports video wall capabilities
  • Custom pre-set layouts for both Matrix and Video Wall Modes
  • HDCP compliant
  • Customizable OSD
  • Exporting and Importing OSD Settings
  • Presentation Switching capabilities
  • Supports audio
  • Fanless design
  • Each Output supports resolutions up to 1080p Full HD and 1920x1080p60Hz
  • Adjust Display settings such as Contrast and Saturation remotely
  • Controllable via IP/serial port
  • Controllable via front panel buttons
  • Adjust the position of the screen remotely
  • Lockable power supply
  • Supports both Progressive and Interlaced video signal

The G44 video wall controller accepts up to 4 HDMI/DVI/VGA/CVBS/YPbPr inputs and displays them on 4 different displays, each with a resolution up to1080p@60fps. G44 not only allows the user to display a single input across all four screens, but also to display different input videos onto different screens working like a matrix switcher.

In addition to the video wall and matrix switching capabilities, the G44 can act as a presentation switcher as well – enabling the user to assign audio from any of the 4 embedded digital audio inputs or 4 analog audio inputs to any of the outputs. This makes the G44 a great solution not only for digital signage, broadcasting and security, but also for meeting and conference room.

The G44 Controller can be easily configured via IP/serial port connection to a Windows based PC, running the management software, from the front panel of the unit, or through 3rd party controllers . The Windows based software provides a user-friendly GUI, greatly simplifying the system configuration. G44 controllers can run standalone without the connection to the control PC, once configured.

DIMENSIONS(W*D*H) (MM) 480mm x 245mm x 44.55mm 1U
INPUT RESOLUTION Up to 1080p@60fps
INPUT FORMAT DVI 1.0 / HDMI 1.3 / VGA / CVBS / YPbPr with embedded audio
OUTPUT RESOLUTION Up to 1080p@60fps
OUTPUT FORMAT DVI 1.0 / HDMI 1.3 / VGA / CVBS / YPbPr with embedded audio
ANALOG OUTPUT AUDIO INTERFACE 3.5mm Captive Screw Connector
ANALOG INPUT AUDIO INTERFACE 3.5mm Captive Screw Connector
HDCP YES
POWER SUPPLY 12V DC / 3A power adapter (AC 100V to 240V, ~50/60Hz)
VIDEO WALL CAPABILITIES Yes
REMOTELY FINE TUNE SETTINGS Yes
OPERATING TEMPERATURE RANGE 0~40 degrees centigrade
OPERATING HUMIDITY RANGE 10%-90% non-condensing
STORAGE TEMPERATURE RANGE -20~60 degrees centigrade
STORAGE HUMIDITY RANGE 10%~90% non-condensing
CONTROL INTERFACE 10/100/1000M Ethernet Port or RS232
COOLING Passive cooling/Fanless
WARRANTY 2 YEARS
MODELS INPUT OUTPUT
Connector Format Connector Format
G44-DVI DVI-I DVI 1.0 / HDMI 1.3 / VGA/ YPbPr / CVBS DVI-I DVI 1.0 / HDMI 1.3 / VGA/ YPbPr / CVBS
