SC-AVC Series Type C

SC-AVC Series Type C

SC-AVC

SC-AVC Series Type C

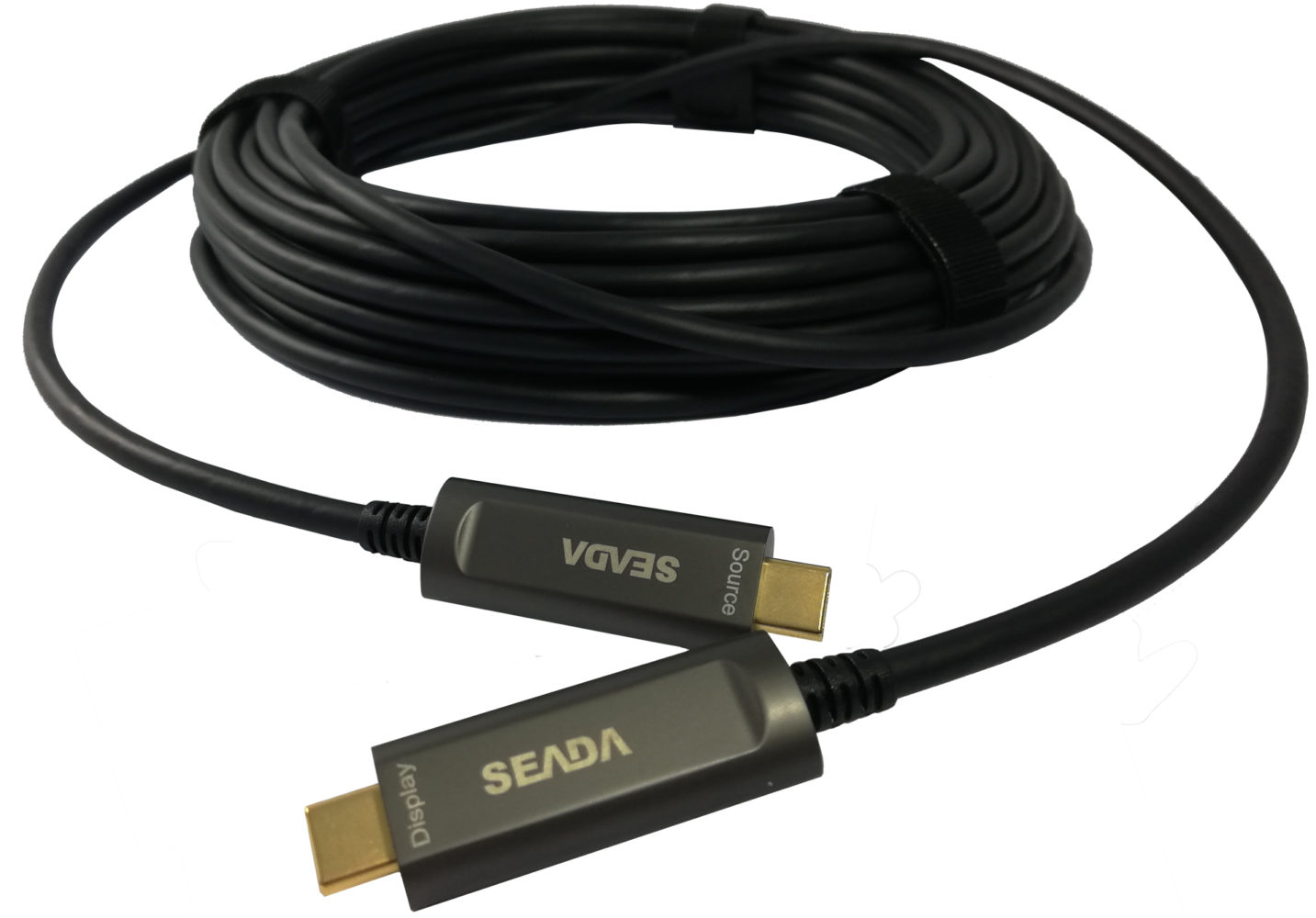

The SC-AVC Series Active Optical Cable (AOC) is the perfect solution to transfer large and highquality video and audio over long lengths (up to 30m) without nearly any loss from type c port to another type c port.

SC-AVC supports 21.6Gbps super speed and meets DP1.2 standard. It can offer high-end signal quality even in a long-distance thanking to its perfect shielding from any interference.

Key Features

  • Low power consumption, no external power supply needed
  • Thinner, lighter, and softer than the normal copper cable
  • Gold-plated contacts for perfect video transfers
  • Meet DP1.2 Standard, bandwidth can reach to 21.6Gbps super speed
  • Support [email protected]/[email protected]/1080p/1080i/720p
  • Support HDCP/EDID/CEC/3D
  • Support length up to 30m
  • Support two sides plug and play
  • Support charging within 10m
  • Plug & Play no driver required
  • RF screening to prevent interference

The SC-AVC Series Active Optical Cable (AOC) is the perfect solution to transfer large and highquality video and audio over long lengths (up to 30m) without nearly any loss from type c port to another type c port.

SC-AVC supports 21.6Gbps super speed and meets DP1.2 standard. It can offer high-end signal quality even in a long-distance thanking to its perfect shielding from any interference.

This Active Optical Cable can be applicated to computer, Wearable tech, TV, Display, Projectors with USB type C interface for audio/video transmission. Also, there is no need to add an external power supply which is common when using copper wire cables over long lengths.

Cable Diameter 4.5mm
Bend Radius (Dynamic/Static 40mm/20mm
Tensile Strength @ Long term 100N
Tensile Strength @ Short term 200N
Crush Resistance @ Long term 200N
Crush Resistance @ Short term 400N
Cable configuration 2*Fiber + 2*cooper + PVC Jacket
Fiber Module 50/125 um
Transducer 850nm VCSEL/PIN
Working current ≤45mA
Power Consumption ≤250mw
Range Up to 30m
Connectors USB 3.0 Standard-A Male to A Male plug
Total Bandwidth 5.0 Gbps
Operating Temperature Range 0~50 degrees centigrade
Operating Humidity Range 10%-90% non-condensing
Storage Temperature Range -20~70 degrees centigrade
Storage Humidity Range 10%~90% non-condensing
Warranty 2 years
Part Number Description
SC-AVC-A10 10m type C to type C AOC, [email protected], 21.6Gbps, audio/video
SC-AVC-A15 15m type C to type C AOC, [email protected], 21.6Gbps, audio/video
SC-AVC-A20 20m type C to type C AOC, [email protected], 21.6Gbps, audio/video
SC-AVC-A25 25m type C to type C AOC, [email protected], 21.6Gbps, audio/video
SC-AVC-A30 30m type C to type C AOC, [email protected], 21.6Gbps, audio/video
