SD-TS04C
SD-TS04C

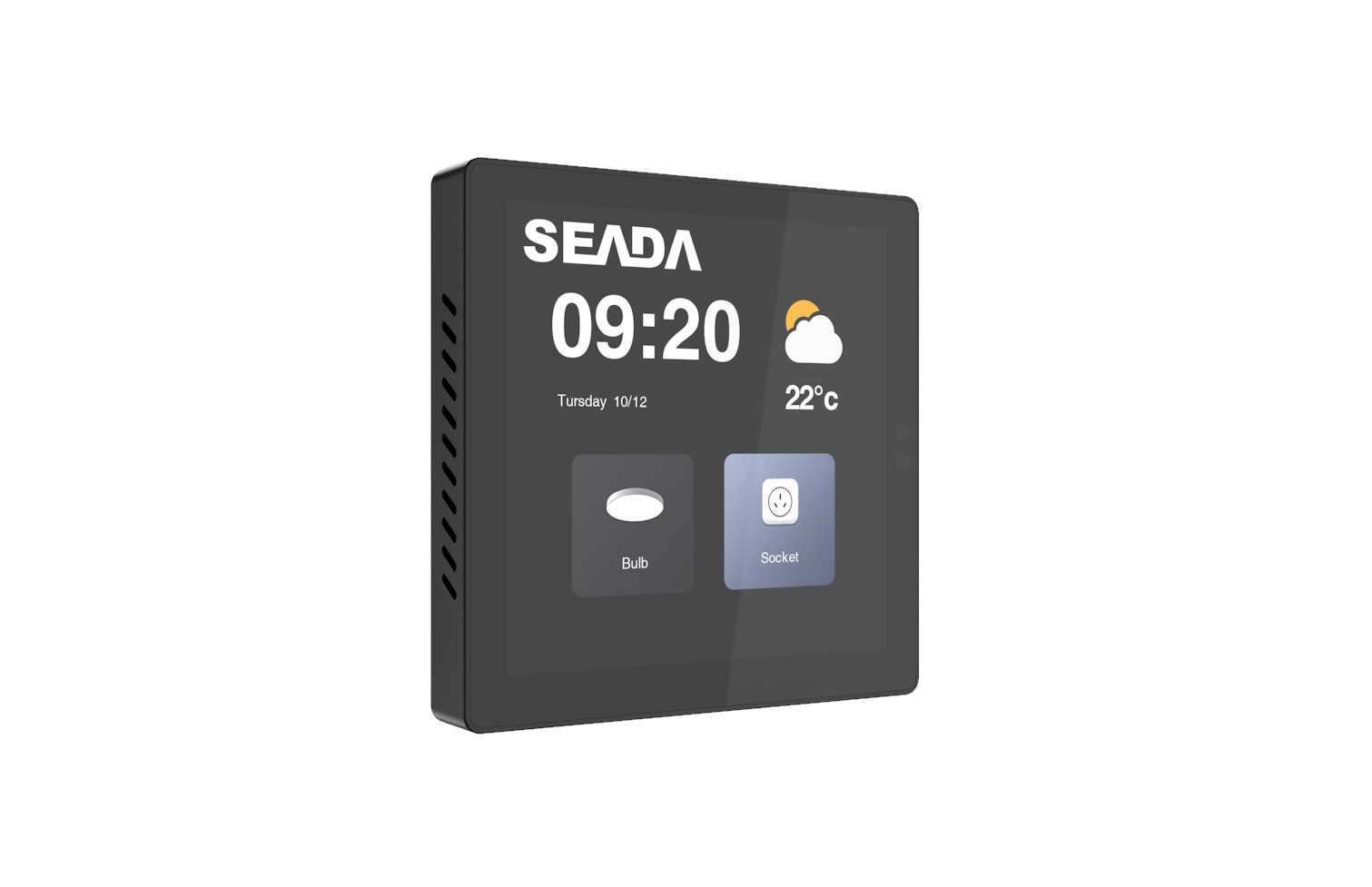

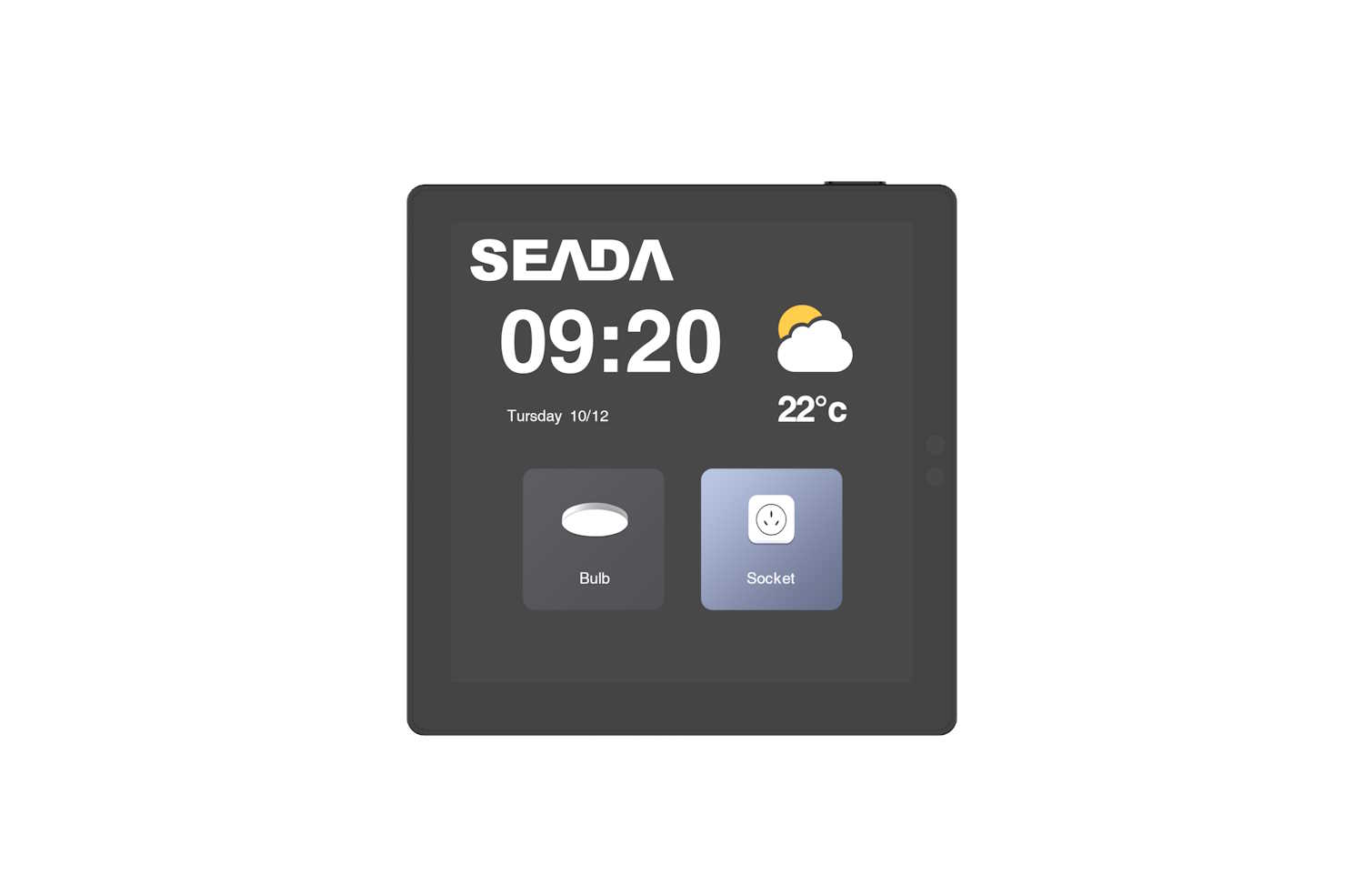

The SD-TS04C Programmable Control Touch Panel is a compact, wall-mounted control interface designed for smart buildings, multimedia systems, and automation environments. It features a 4- inch capacitive touch screen with 480×480 resolution, running on Android 11 and powered by an ARM Cortex-A55 processor.
Key Features
- ARM Cortex-A55 architecture 1.8Ghz main frequency
- Android 11.0 system, 4GB DDR4 RAM, 32GB EMMC Flash
- 4-inch 480*480 (1:1) resolution, capacitive touch screen, standard UK 1-Gang
- Supports AI-assisted generation of touch panel UI layouts and node-based control logic
- One machine with two modes, can be used as touch screen central controller or user terminal
- Supports access to the host system management web page with a password
- Supports one RS-232 serial communication port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
- Interface design and programming through IDE design tools
- Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)
- With 1 Gigabit network port, the highest rate up to 1G/bps
- Dual power supply mode, supporting PoE or DC power supply
The SD-TS04C Programmable Control Touch Panel is a compact, wall-mounted control interface designed for smart buildings, multimedia systems, and automation environments. It features a 4- inch capacitive touch screen with 480×480 resolution, running on Android 11 and powered by an ARM Cortex-A55 processor.

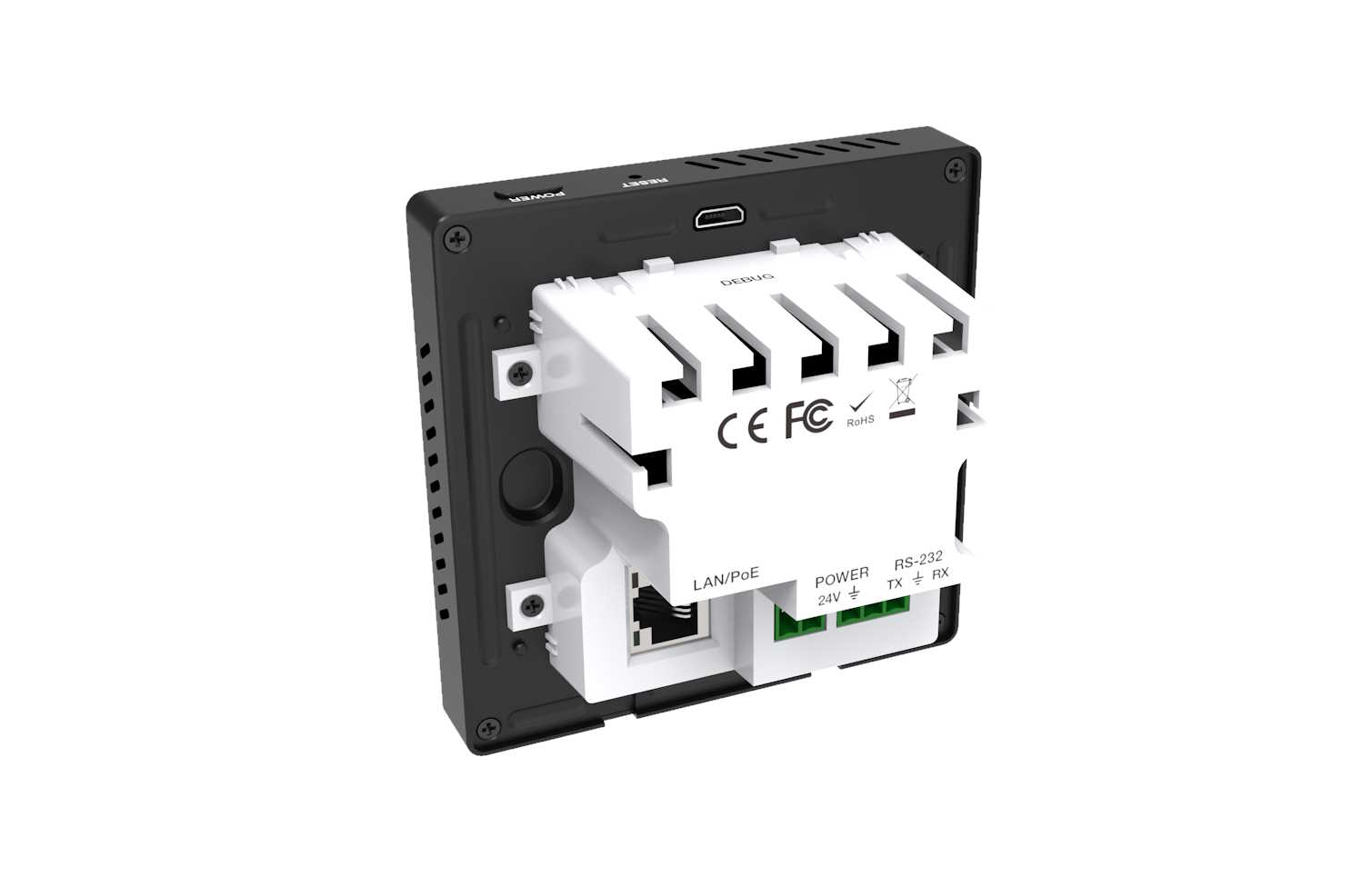

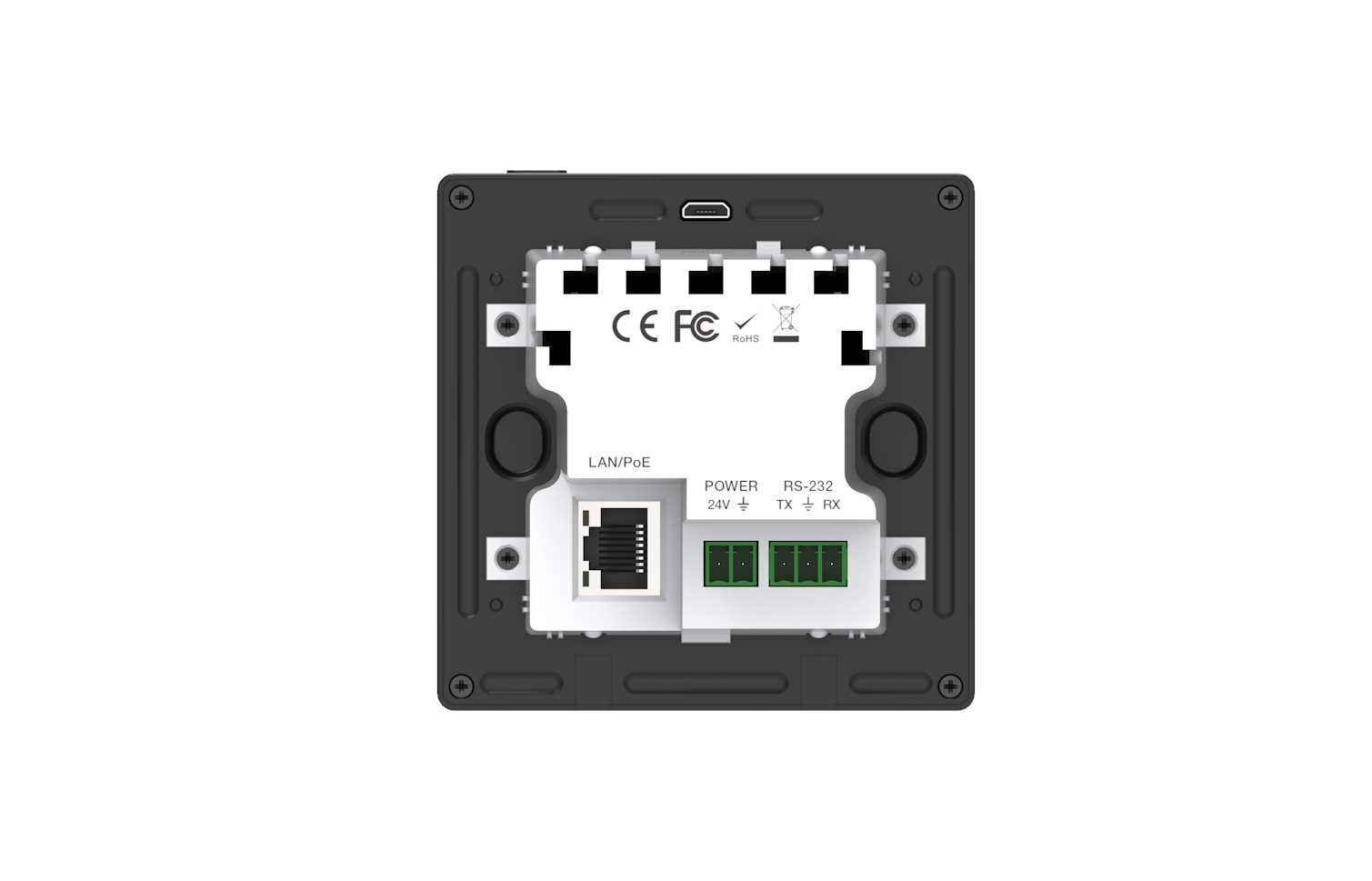

The SD-TS04C supports one LAN port and one RS-232 serial port which can be programmed to control the devices directly or it can work with SEADA Port Expanders to control more devices simultaneously.
The SD-TS04C also features an integrated AI-assisted engineering system capable of automatically generating touch panel UI layouts and logical control workflows based on natural language instructions, helping integrators reduce programming time and simplify system deployment.
The SD-TS04C is suitable for smart homes, conference rooms, training centres, control rooms, broadcast studios, exhibition environments, and industrial automation systems.
| OPERATION SYSTEM | ANDROID 11 |
| CPU | ARM CORTEX-A55 1.8GHz |
| RAM | 4GB DDR4 RAM |
| FLASH MEMORY | 32GB EMMC FLASH |
| RESOLUTION | 480*480 |
| TOUCH TYPE | CAPACITIVE TOUCH SCREEN |
| POWER SUPPLY | 24V DC/1A OR PoE |
| POWER CONSUMPTION | 5W |
| OPERATING TEMPERATURE RANGE | 0~40 DEGREES CENTIGRADE |
| OPERATING HUMIDITY RANGE | 20%~80% (NO CONDENSATION) |
| STORAGE TEMPERATURE RANGE | -20~60 DEGREES CENTIGRADE |
| STORAGE HUMIDITY RANGE | 10%~90% |
