SDC-TR02

SDC-TR02

SDC-TR02

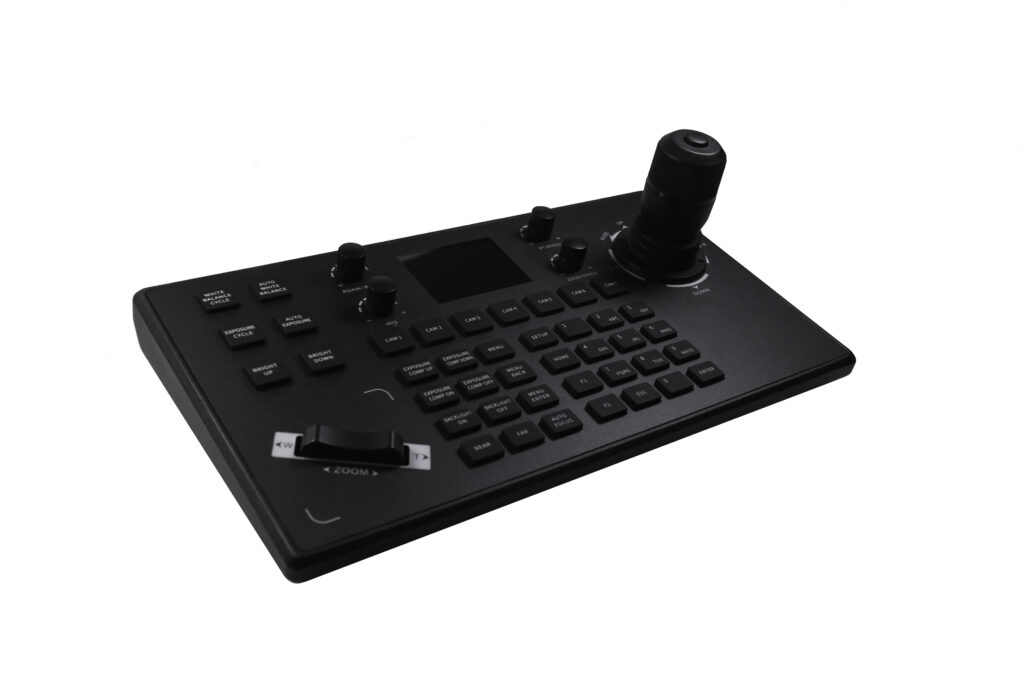

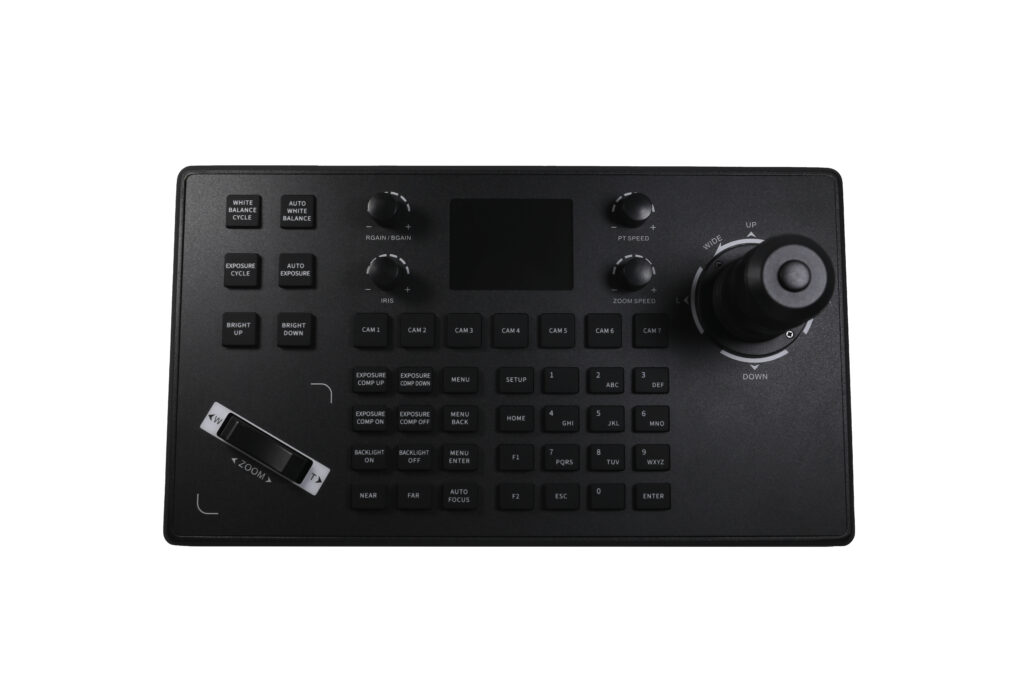

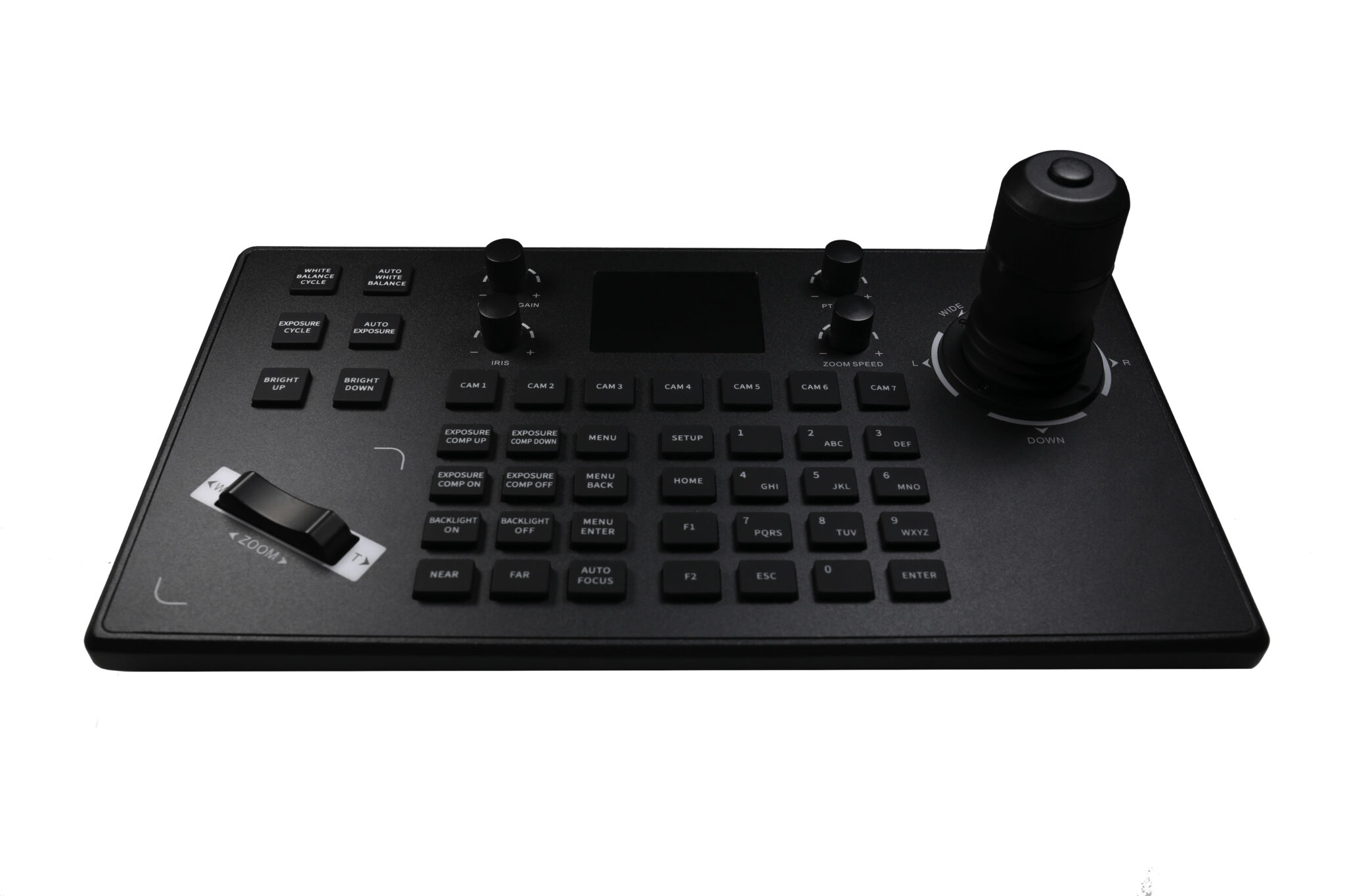

SDC-TR02 control keyboard is the PoE enabled unit to control PTZ cameras either via IP with ONVIF or VISCA or via RS232/422/485 with PELCO-P, PELCO-D or VISCA protocols. One unit of SDC-TR02 control keyboard can be used to control an entire video conferencing system with up to 255 PTZ cameras.

Key Features

  • Supports RJ45, RS422/485/232 control interfaces
  • Supports up to 255 cameras
  • Supports VISCA, ONVIF, PELCO-P, PELCO-D, VISCA over IP protocol
  • Supports 4D joystick to control camera PTZ function
  • Supports controls of camera rotation, zoom, exposure, focus and so on
  • Supports displaying the real-time working status on its LCD display
  • Supports seesaw switch to control zoom speed
  • Supports button sound prompt function
  • Supports customised hotkeys on F1+F2
  • Supports control over IP using LAN
  • Supports PoE
  • Supports web browser UI
  • Supports recovery from short circuit on RS422 with its over-current protection ability
  • Supports up to 4 cameras shortcut control buttons
  • Supports up to 1200m communication distance on RS485 (0.5mm Twisted Pair Cable)

SDC-TR02 control keyboard is the PoE enabled unit to control PTZ cameras either via IP with ONVIF or VISCA or via RS232/422/485 with PELCO-P, PELCO-D or VISCA protocols. One unit of SDC-TR02 control keyboard can be used to control an entire video conferencing system with up to 255 PTZ cameras.

With its 4D joystick and function keys, SDC-TR02 can perform various control operations on the selected PTZ camera devices. Its LCD screen can show the control commands and real-time working status enabling users to know more about the system.

Its nearly plug and play ability makes SDC-TR02 control keyboard perfect for video conferencing cameras controlling at government, conference, courts, banks, securities, education section and so on.

Communication Method Network: RJ45; Serial Port: RS422, RS232, RS485
Communication Protocols

Network: Onvif, Visca

Serial Port: Visca, Pelco-D, Pelco-P

Communication Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 115200bps
Interface Method 5pin crimping terminal, RS232 interface, RJ45
Joystick 4 Dimension (Control up, down, left, right, zoom, lock joystick)
Display Method Blue screen LCD display
Prompt Sound Button sound prompt on/off
Input Voltage DC12V
Power Consumption 6W MAX
Operating Temperature Range -10°C-50°C
Operating Humidity Range 10%-90% non-condensing
Storage Temperature Range -20°C-70°C
Storage Humidity Range 10%~90%
Dimension 320mm(L) x 180mm (W) x 107mm (H)
Upgrade Method Web upgrading
Warranty 2 years
External Power Supply DC12V/2A
Warranty 2 Years
