G10GRTF is the SDVoE Compliant transceiver All-In-One AV over IP solution. G10GRTF provides highest-quality,
uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Copper or Fiber Network Switch with instant switching, Video Wall and Multiview functions.
G10GCTL AV over IP Management Controller is used to control and manage Genesis® SDVoE IP products.
Key Features
G10GRTF
- HDMI 2.0b and HDCP 2.2 compliant
- Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
- Flexible transceiver design (Encoder, Decoder, Copper and Fiber ports within a single box)
- Encoder supports HDMI Loop out
- Support HDR10, Dolby Vision, HLG, 3D as well
- Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X
- Support Zero-Frame latency operating mode
- Support signal extension, seamless switching, Matrix, Video Wall up to 9×9 and Multiview up to 25 windows
G10GCTL
- Easy to create project, control and manage the system
- HTTPS, SSH security compatible
- Built-in Web GUI control interface, supporting Drag & Drop operations
- Support image preview
- Support video, audio, RS-232, IR, KVM control and management of the distributed system
- Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks
- Support LAN/RS-232 port control and third-party central control
- Multiple circuits protection, lightning protection and ESD design

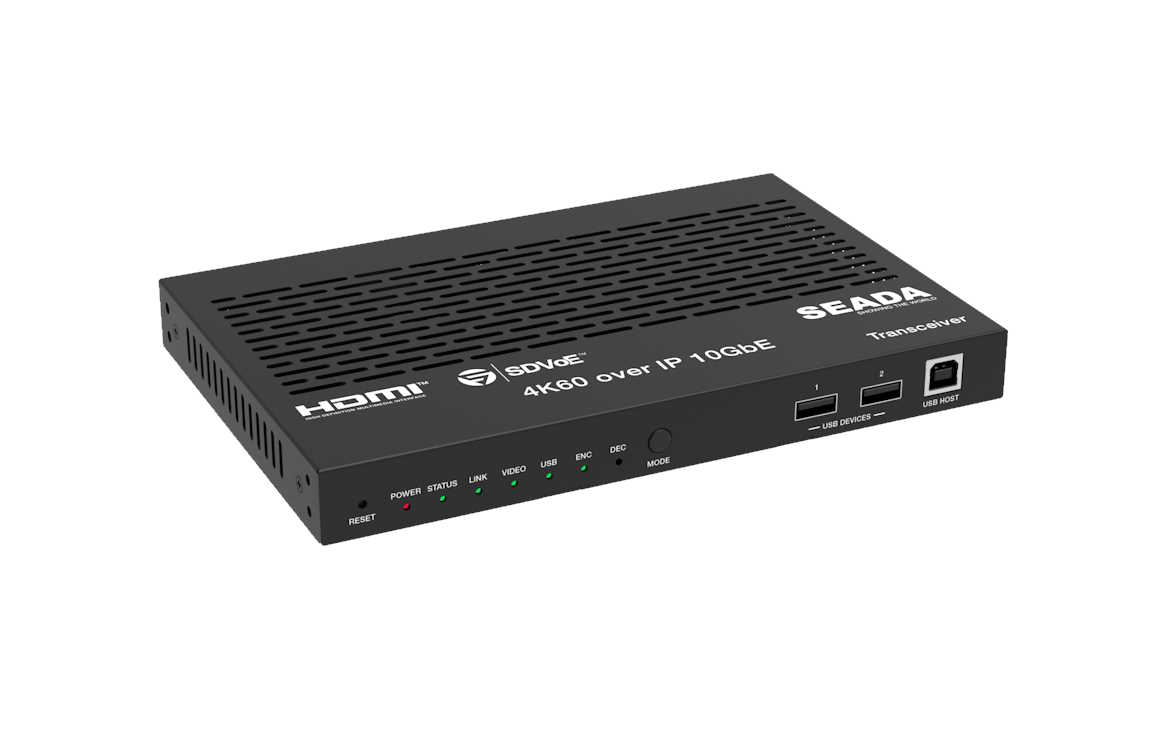

G10GRTF is the SDVoE Compliant transceiver All-In-One AV over IP solution.
G10GRTF provides highest-quality, uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Copper or Fiber Network Switch with instant switching, Video Wall and Multiview functions.
It can transfer advanced HDMI content such as HDR (high dynamic range), full colourdepth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control. Its built-in Secondary Stream supports a high quality, bandwidth configurable H.264/H.265 compression video stream for portable device preview purpose.

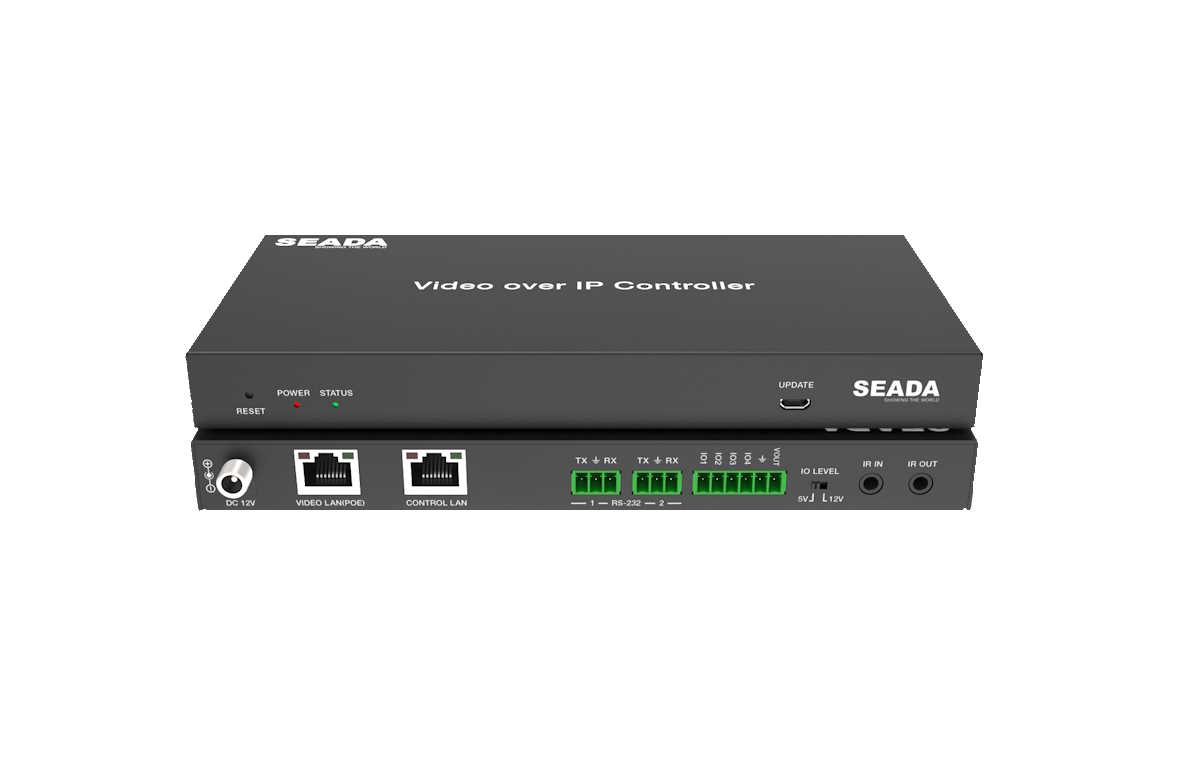

G10GCTL AV over IP Management Controller is used to control and manage Genesis® SDVoE IP products. G10GCTL supports dual 1G network ports, which can realize dual-network isolation of Control network and Multicast video distribution network.
| VIDEO RESOLUTION | UP TO 4K@60HZ 4:4:4 |
| VIDEO NETWORK BANDWIDTH | 10G |
| COLOUR DEPTH | FULL COLOUR-DEPTH |
| COLOUR SPACE | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI AUDIO FORMATS | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| TRANSMISSION DISTANCE | 100M (CAT6A/7) / 70M (CAT6) |
| Power Supply | PoE or DC 12V/2.5A |
| OPERATING TEMPERATURE | 0 – 40°C |
| OPERATING HUMIDITY | 20%-90% (NO CONDENSATION) |
| STORAGE TEMPERATURE | -20 – 60°C |
| STORAGE HUMIDITY | 10 – 90% (no condensing) |
| CONTROL INTERFACE | TCP/IP CONTROL NETWORK/RS232 |
| MODELS | G10GRTF | G10GCTL |
| TYPE | TRANSCEIVER | CONTROLLER |
