SD-TS10C
SD-TS10C

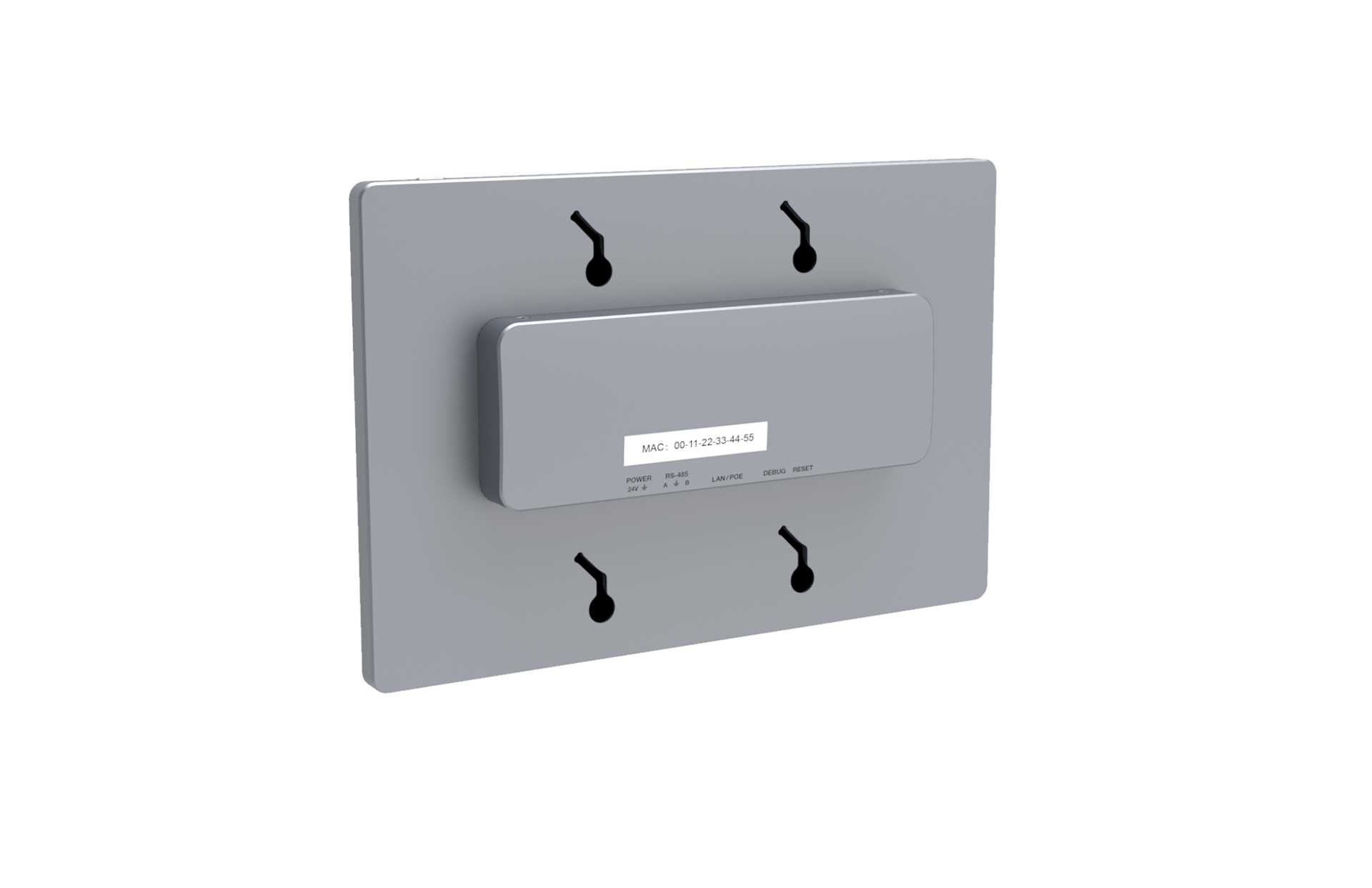

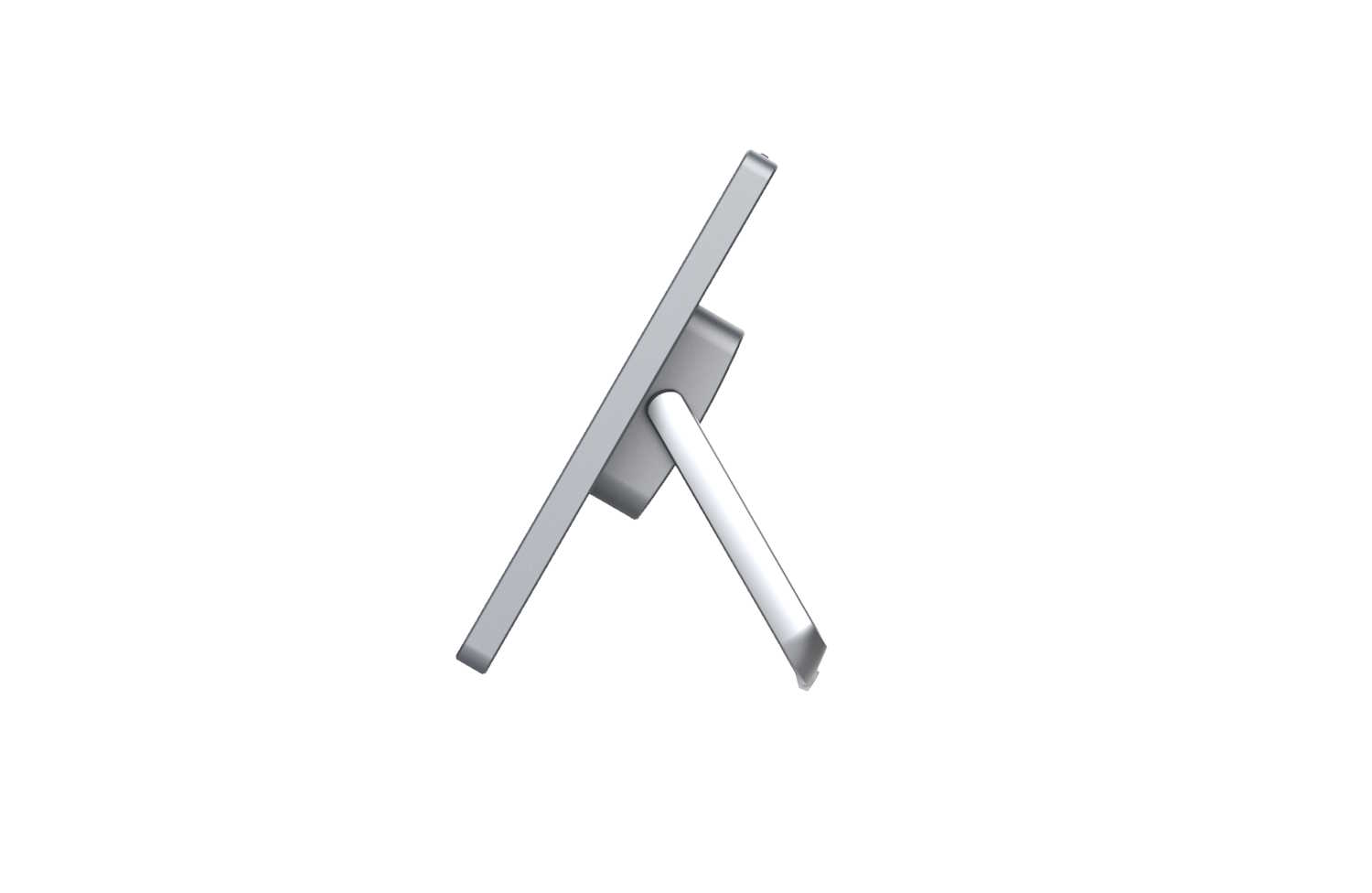

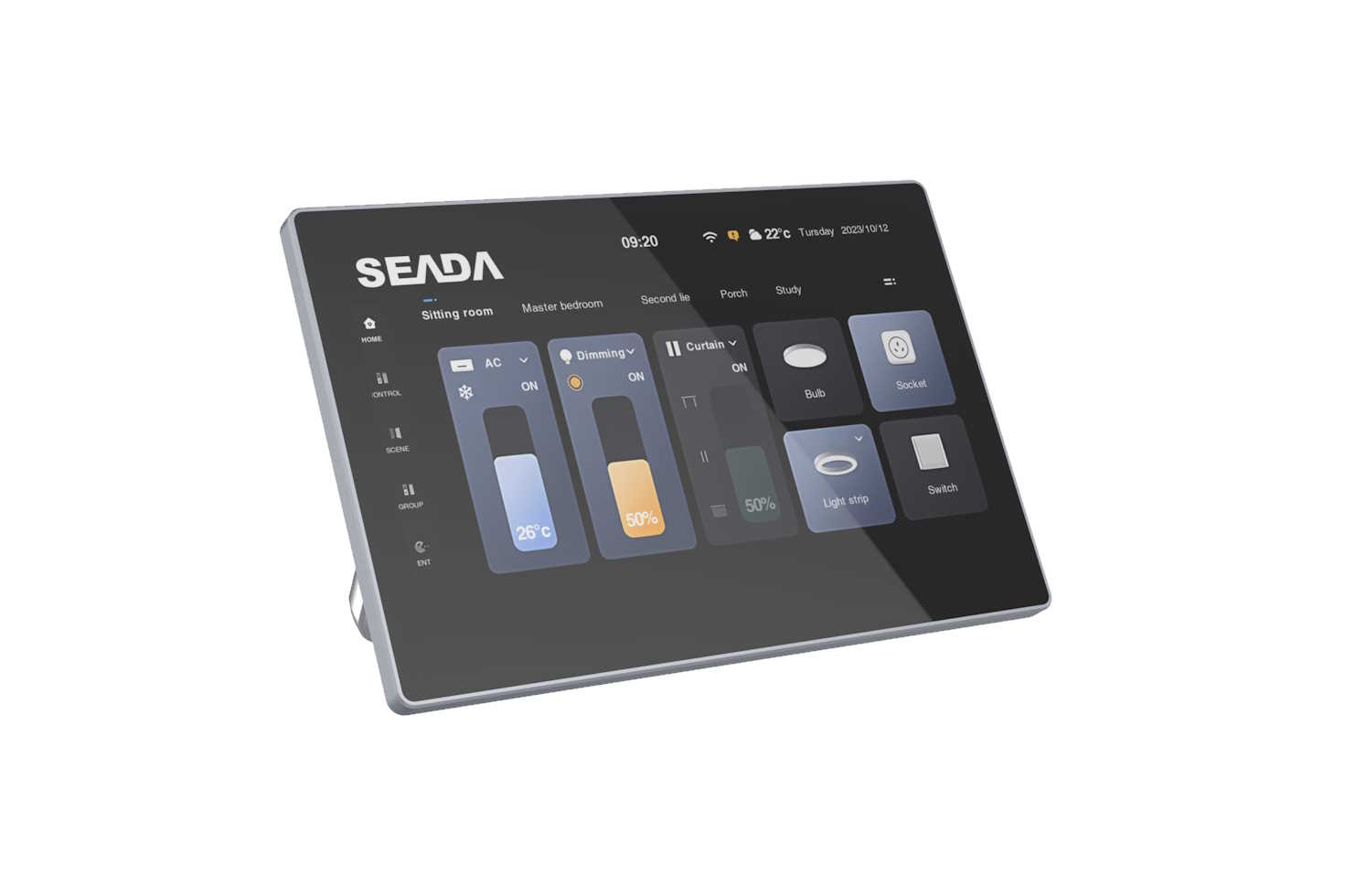

The SD-TS10C Programmable Control Touch Panel is a compact, wall-mounted control interface designed for smart buildings, multimedia systems, and automation environments. It features a 10- inch capacitive touch screen with 1280*800 resolution, running on Android 11 and powered by an ARM Cortex-A55 processor.
Key Features
- ARM Cortex-A55 architecture 1.8Ghz main frequency
- Android 11.0 system, 4GB DDR4 RAM, 32GB EMMC Flash
- 10-inch 1280*800 (16:10) resolution, wall-mounted design
- One machine with two modes, can be used as touch screen central controller or user terminal
- Support one RS-485 serial communication port, which can configure 8 baud rates in the range of 2400- 115200bps
- Support access to the host system management webpage with a password
- Interface design and programming through IDE design tools
- Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)
- With 1 Gigabit network port, the highest rate up to 1G/bps
- Dual power supply mode, supporting PoE or DC power supply
The SD-TS10C Programmable Control Touch Panel is a compact, wall-mounted control interface designed for smart buildings, multimedia systems, and automation environments. It features a 10-inch capacitive touch screen with 1280*800 resolution, running on Android 11 and powered by an ARM Cortex-A55 processor.
The SD-TS10C supports one LAN port and one RS-232 serial port which can be programmed to control the devices directly or it can work with SEADA Port Expanders to control more devices simultaneously.
The SD-TS10C is suitable for smart homes, conference rooms, training centres, control rooms, broadcast studios, exhibition environments, and industrial automation systems.
| OPERATION SYSTEM | ANDROID 11 |
| CPU | ARM CORTEX-A55 1.8GHz |
| RAM | 4GB DDR4 RAM |
| FLASH MEMORY | 32GB EMMC FLASH |
| RESOLUTION | 1280*800 |
| TOUCH TYPE | CAPACITIVE TOUCH SCREEN |
| POWER SUPPLY | 24V DC/1A OR PoE |
| POWER CONSUMPTION | 6W |
| OPERATING TEMPERATURE RANGE | 0~40 DEGREES CENTIGRADE |
| OPERATING HUMIDITY RANGE | 20%~80% (NO CONDENSATION) |
| STORAGE TEMPERATURE RANGE | -20~60 DEGREES CENTIGRADE |
| STORAGE HUMIDITY RANGE | 10%~90% |
