Wall Plate HDBaseT Extenders

Key Features

• Supports HDMI signal up to 4K@60Hz 4:2:0
• Supports HDMI 1.4 standard and HDCP 2.2 compliant. Ensures display of contentprotected media and interoperability with other HDCP compliant devices
• Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080P@60Hz up to 229ft/70m.
• Supports RS232 pass-through with HDBaseT connection and local control
• Supports IR pass-through to extend IR signal to control display device
• The DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command.
• The HDBT port supports 24V-48V PoC input and compatible with 48V PoH, the switcher can be powered from the compatible HDBaseT receiver by the CATx cable, and it also supports 24V PoC output.
• Firmware upgrade by Micro-USB port

Overview

SEADA’s Wall Plate HDBaseT Extenders are 3×1 Wallplate Transmitter Switchers.

The SD-WP31C is a 3×1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or Slimport input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable.

The SD-WP31V is a 3×1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or VGA input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable.

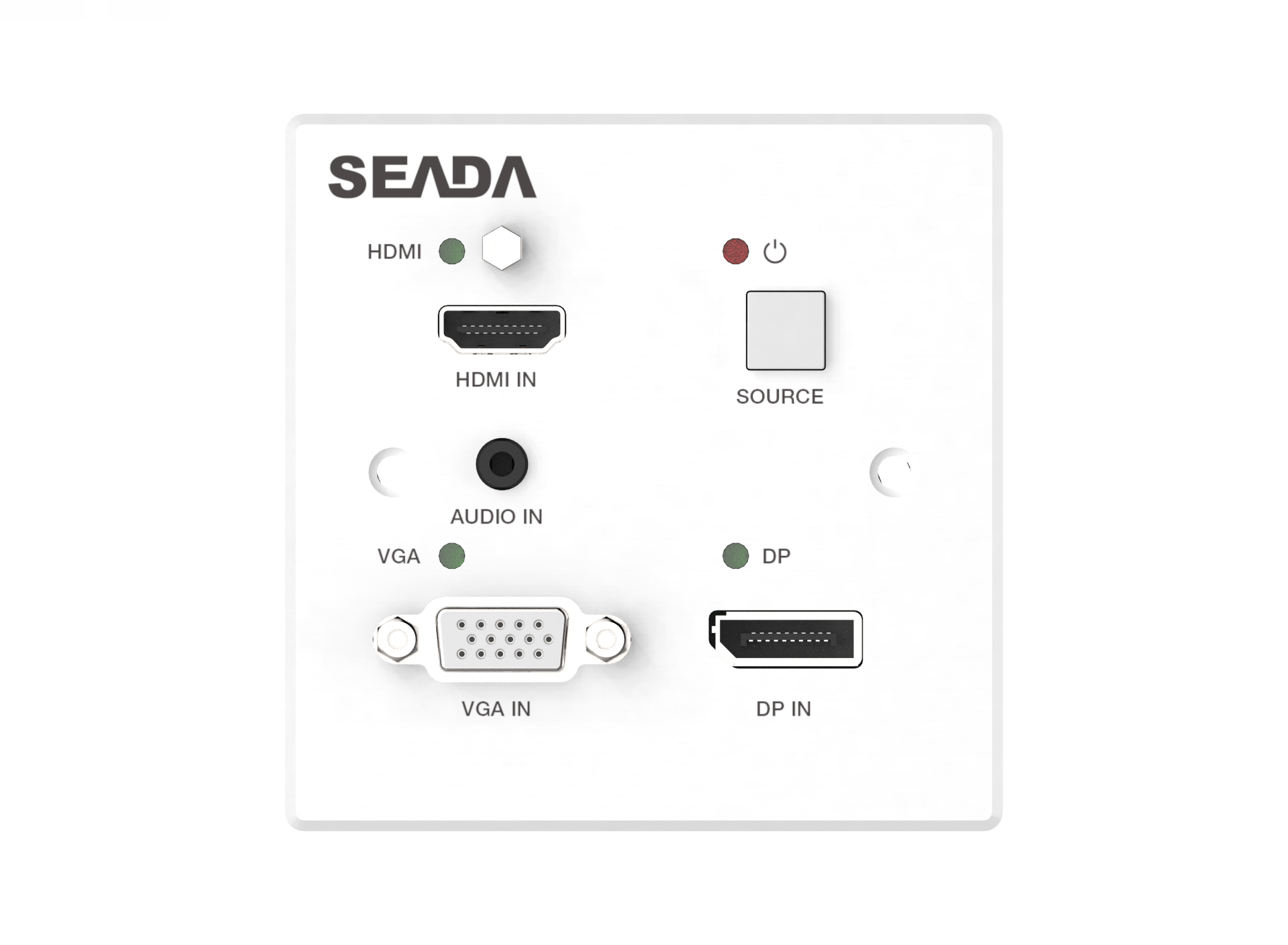

The SD-WP31D is a 4K HDBaseT Wall-plate, it supports one HDMI input, one DP input and one VGA with audio input within a standard medium 86mm×86mm wall box. The HDBaseT port over a single Cat6/6a cable extends distance up to 229.6ft / 70m with 1080p60Hz and up to 131.2ft / 40m with 4K30 YCbCr 4:4:4.
