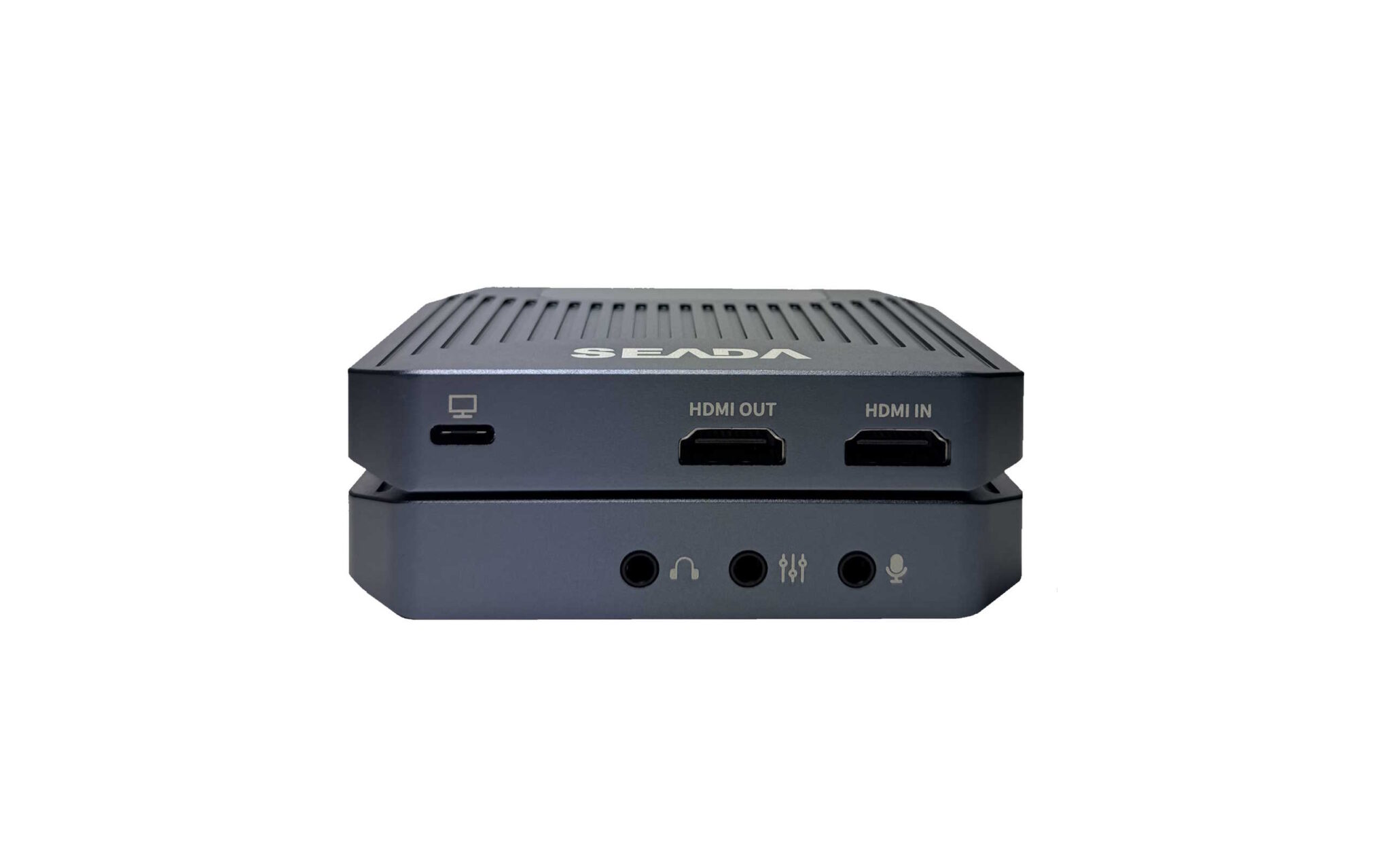

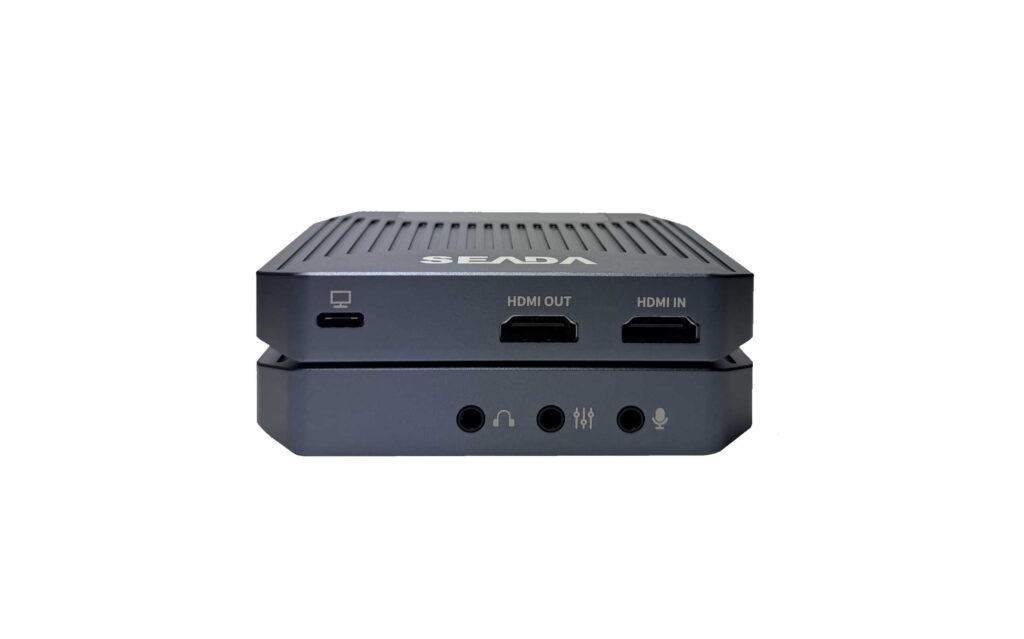

SD-XHU 4K@60 Video Capture
SD-XHU
The SD-XHU is a high-performance 4K60 HDMI video capture card tailored for professional streaming, recording, and live production workflows. It supports HDMI input and loop-out at up to 4K@60Hz, with USB 4K capture ensuring ultra-clear, low-latency video transmission
Key Features
- Supports HDMI input up to 4K@60Hz (downward compatible)
- HDMI loop-out up to 4K@60Hz (downward compatible)
- USB capture supports resolutions up to 4K@60Hz
- Supports audio input via Mic, audio headset, or Line-in mixer
- Equipped with switch button and adjustable light fan for flexible operation
- Efficient air-cooled heat dissipation with metal heat conduction and side-vent design – no scalding
- Low power consumption design with full Aluminium alloy housing
- Compatible with standard video resolutions and formats
The SD-XHU is a high-performance 4K60 HDMI video capture card tailored for professional streaming, recording, and live production workflows. It supports HDMI input and loop-out at up to 4K@60Hz, with USB 4K capture ensuring ultra-clear, low-latency video transmission. The device features versatile audio input options including microphone, headset, and Line-in, making it suitable for live commentary and conferencing. Engineered with an all-aluminum alloy housing and air-cooled heat dissipation system, it offers excellent thermal performance and long-term stability.
Compact, efficient, and easy to use, the SD-XHU is ideal for content creators, educators, and AV professionals.
| Dimensions(W*D*H) (mm) | 99x79x20 |
| Input Ports | 1x HDMI IN, 1x Audio IN, 1x Mic IN |
| Output Ports | 1x HDMI OUT, 1x Audio OUT, 1x USB Type-C OUT |
| HDMI Input Resolution | Up to 4K@60Hz |
| USB Output Resolution | Up to 4K@60Hz |
| HDMI Loop Out Resolution | Up to 4K@60Hz |
| Audio & Video Capture | Compatible with UVC and UAC standards |
| Operating System Support | Windows 7/8/10/11, Vista, Linux, macOS 10.3 or later |
| Operating Temperature Range | 0~40 degrees centigrade |
| Operating Humidity Range | 10%-90% RH non-condensing |
| Storage Temperature Range | -20~60 degrees centigrade |
| Storage Humidity Range | 10%~90% RH non-condensing |
