SWME 4K Seamless Modular Matrix Switchers
With Video Wall & Multiview
SWME

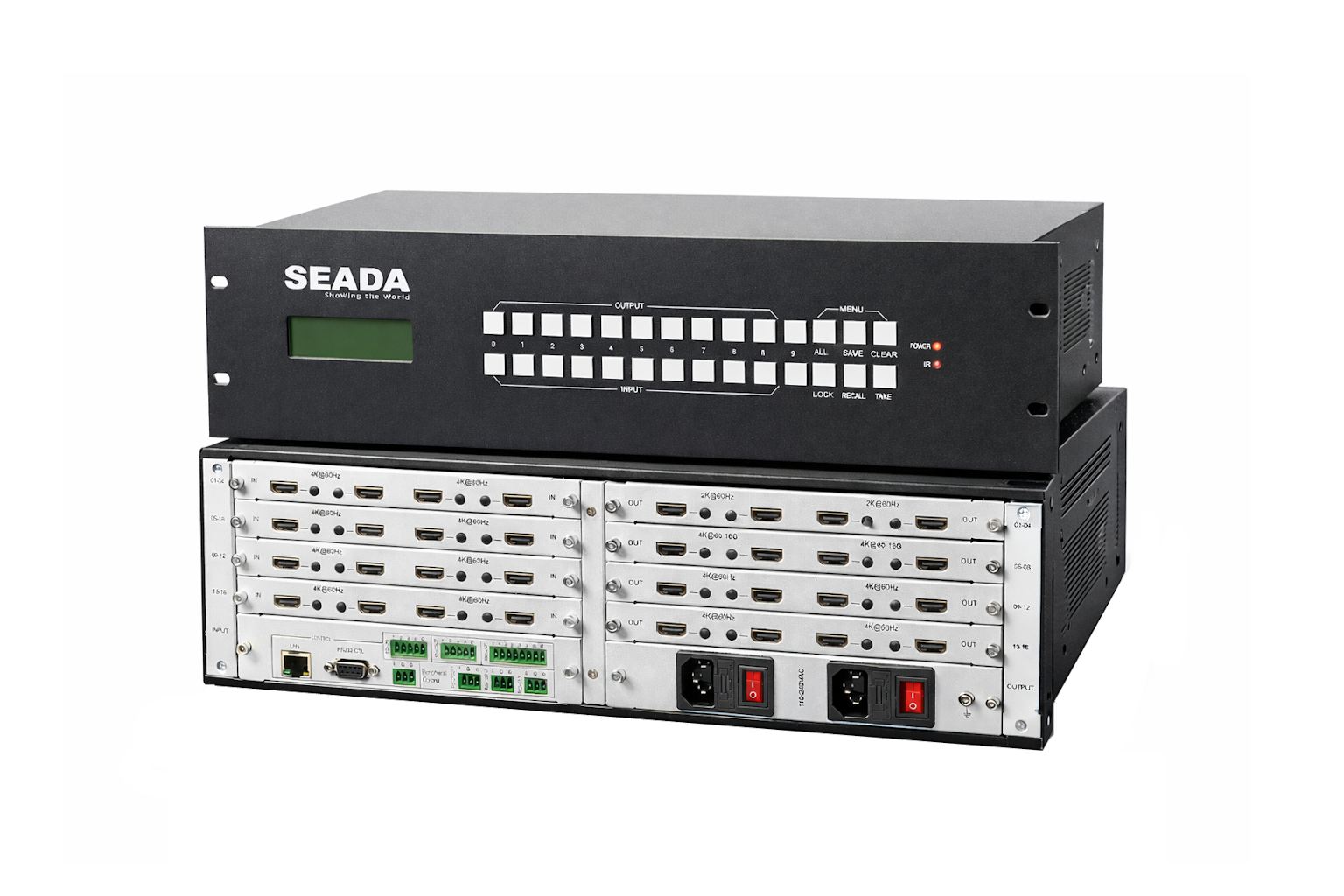

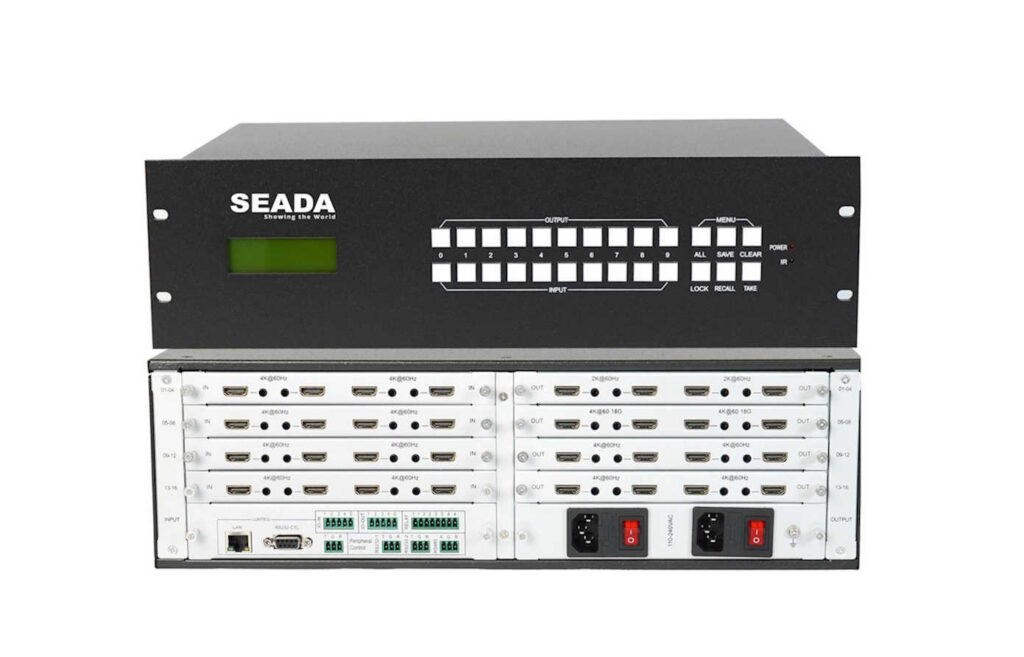

The SolarWall Matrix Elite version (SWME) Modular seamless series matrix switchers offer advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis at 4K 60Hz 4:4:4 resolution.
Key Features
- Supports 4K@60fps (4:4:4) input and output
- Seamless switching
- Supports video wall feature
- Supports multiview feature
- Support signal preview*
- Redundant power supply
- Support up/down scaling
- Advanced Crossbar technology
- Supports audio
- Supports OSD on output windows
- Supports individual screen customised video setting
- No PC vulnerabilities
- Multi formats on input and output: DVI, HDMI, HDBaseT, SDI, VGA, Fiber
- Low power consumption
- HDBaseT with PoC
- HDCP compliant
- Supports customised EDID on inputs and outputs
- Supports customised pre-set layouts
*Does not support on 2U
The SolarWall Matrix Elite version (SWME) Modular seamless series matrix switchers offer advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis at 4K 60Hz 4:4:4 resolution.
The SWME switcher allows users to independently switch and route video and audio content directly to various monitors displays projectors and/or speakers simply by using front panel pushbuttons or remote control or controlling via TCP/IP or RS232. A built-in Scaler encodes the video format to provide seamless real-time switching. Furthermore, SWME can display up to 4 input video sources onto a single screen or a multi screens video wall.
The SWME matrix switchers are also able to offer extremely fast start-up performance and a working environment free of viruses and software conflicts, ensuring 24/7 hassle free operational ability.
| Controller Chassis | 19” ANST/EIA RS-310C standard industrial chassis |
| Input Channel | Up to 80 inputs |
| Input Format | DVI/HDMI/VGA, SDI, SD, HDBaseT, Fiber |
| Output Channel | Up to 80 outputs |
| Output Format | DVI/HDMI/VGA, SDI,SD, HDBaseT, Fiber |
| HDCP support | YES |
| POWER SUPPLY | RPSU |
| Input Voltage | AC 110V to 240V, 50/60Hz |
| Operation system | Windows 10/11 |
| Warranty | 2 Years |
| Operating temperature range | 0~40 degrees centigrade |
| Operating humidity range | 10%-90% |
| Storage temperature range | 0~60 degrees centigrade |
| Storage humidity range | 10%~90% |
| Control Interface | RS232 or 10/100/1000M Ethernet Port |
| Models | Chassis | Dimension (mm) (W*D*H) | Max Input | Max Output |
| SWME08 | 2U | 482*380*88 | 8 | 8 |
| SWME16 | 3U | 482*380*134 | 16 | 16 |
| SWME32 | 5U | 482*380*223 | 32 | 32 |
| SWME80 | 11U | 482*380*512 | 80 | 80 |
