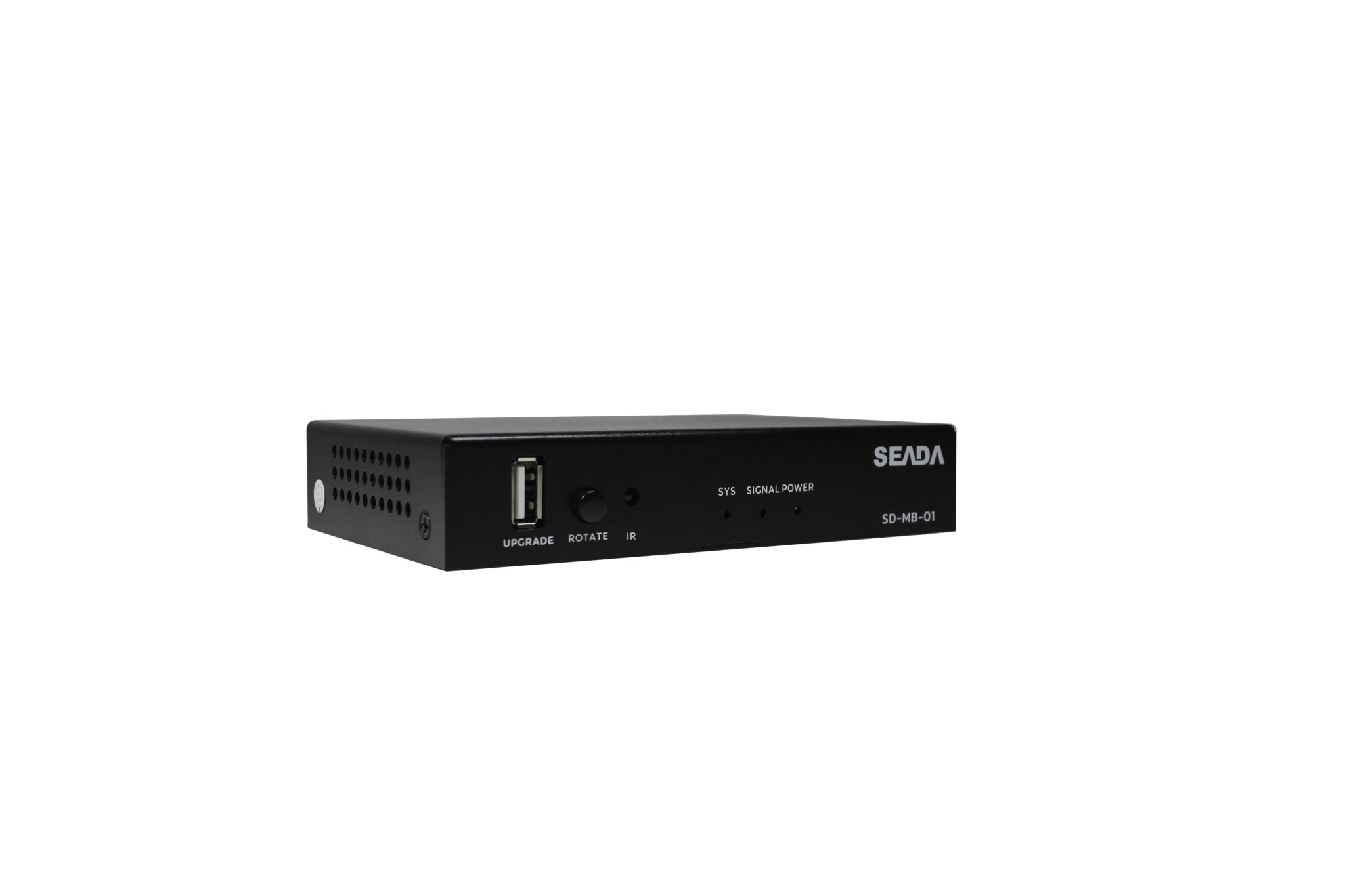

SD-MB 4K MAGIC BOX
SD-MB-01
SD-MB-01 Magic Box is a multifunctional, advanced audio and video processor. It can operate as a signal generator, delivering up to 30 distinct test pattern signals — ideal for video calibration and troubleshooting.
Key Features
- Supports Signal Generation
- Supports output resolution customisation
- Supports input EDID management
- Supports up and downscale
- Supports signal cropping
- Supports customised output signal window size
- Supports customised output signal window position
- Supports signal rotation of 90/180/270
- Supports audio embedding
- Supports audio de-embedding
- Supports customised preset layouts
- Supports HDMI1.4、HDCP1.4、HDMI2.0、HDCP2.2
- Supports up to 4K@60Hz for both input and output

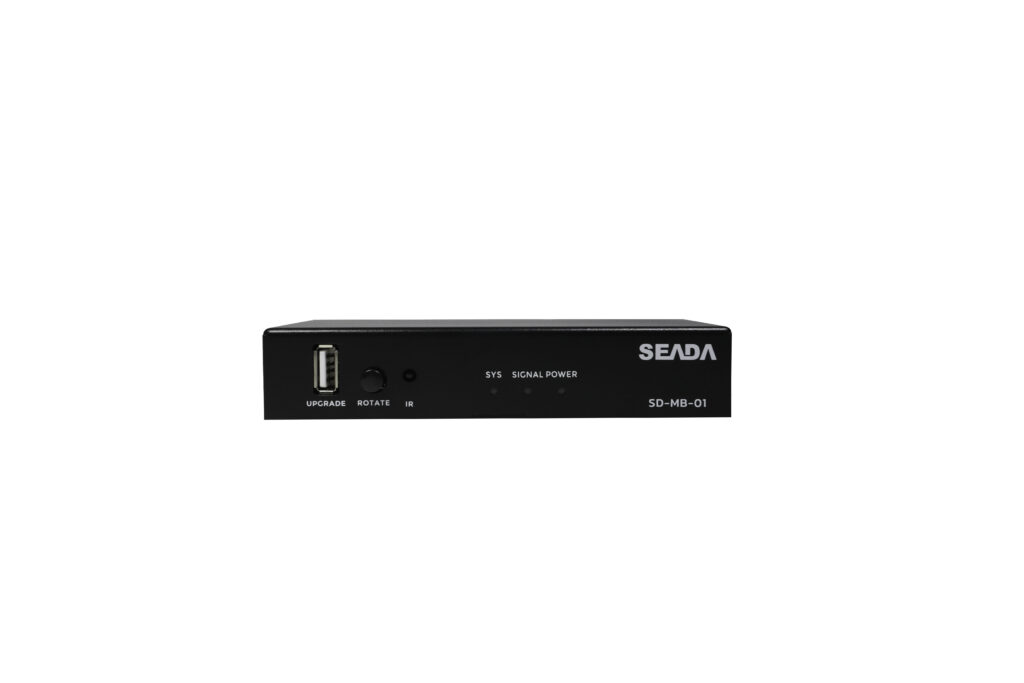

- Supports multiple control methods, including front panel buttons, IR remote and the RS232 control
- Supports USB upgrading
SD-MB-01 Magic Box is a multifunctional, advanced audio and video processor. It can operate as a signal generator, delivering up to 30 distinct test pattern signals — ideal for video calibration and troubleshooting.
Equipped with a built-in scaler, the SD-MB-01 supports both upscaling and downscaling to custom resolutions, enabling output at virtually any resolution or frame rate within the 4K range. The scaler also supports video source rotation at 0°, 90°, 180°, or 270° angles.
For video input management, the SD-MB-01 allows customized EDID configuration via DIP switches or RS232 command lines, providing flexible compatibility with various display setups. In addition, it features audio embedding at the HDMI input and de-embedding at the HDMI output, making it a powerful tool for integrated AV workflows.
| Video | |
| INPUT PORT | 1x HDMI2.0 |
| INPUT RESOLUTION | Up to 3840×2160@60HZ |
| OUTPUT PORT | 1xHDMI2.0 |
| OUTPUT RESOLUTION | Up to 3840×2160@60HZ |
| AUDIO | |
| INPUT PORT | 1x HDMI, 1*3.5mm Analog |
| INPUT AUDIO SIGNAL | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 |
| OUTPUT PORT | 1* HDMI2.0, 1* Analog Audio(3.5mm audio) |
| OUTPUT AUDIO SIGNAL | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 |
| CONTROL | |
| FRONT CONTROL | ROTATE |
| IR | IR REMOTE CONTROLLER (NOT INCLUDED IN PACKAGE) |
| RS232 | 3-PIN PHOENIX |
| OTHERS | |
| OPERATING TEMPERATURE | 0 to +45 C (32 to + 113 F) |
| STORAGE TEMPERATURE | -20 to +70 C (-4 to + 158 F) |
| HUMIDITY | 10% TO 90% |
| POWER ADAPTER | DC 12 V 1.5A |
| POWER CONSUMPTION | 10W(MAX) |
| DIMENSIONS | 138x85x28 |
