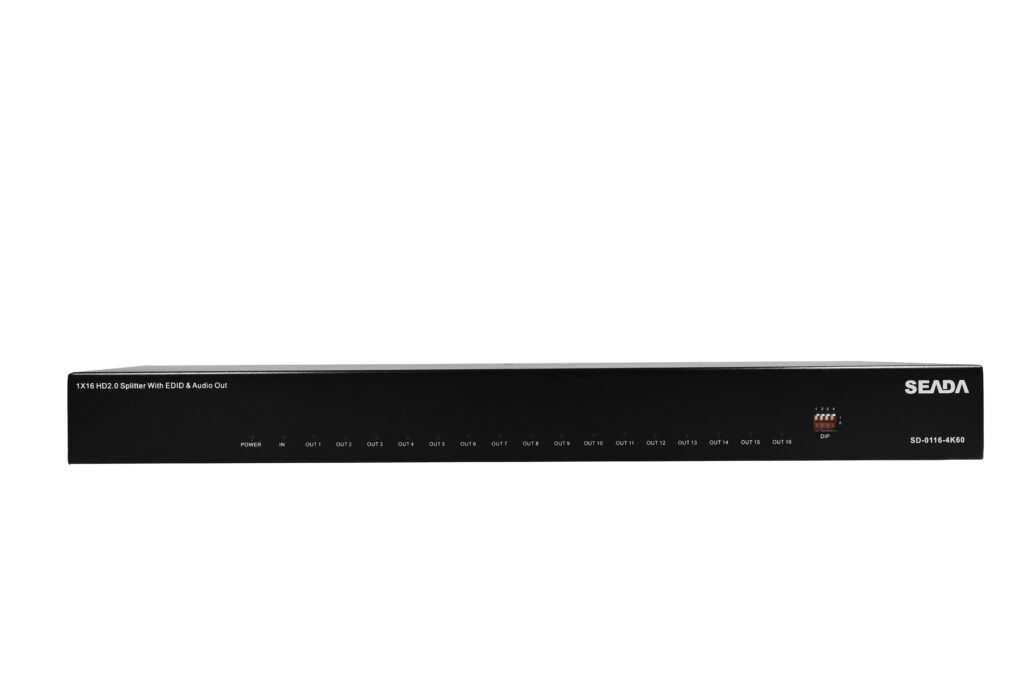

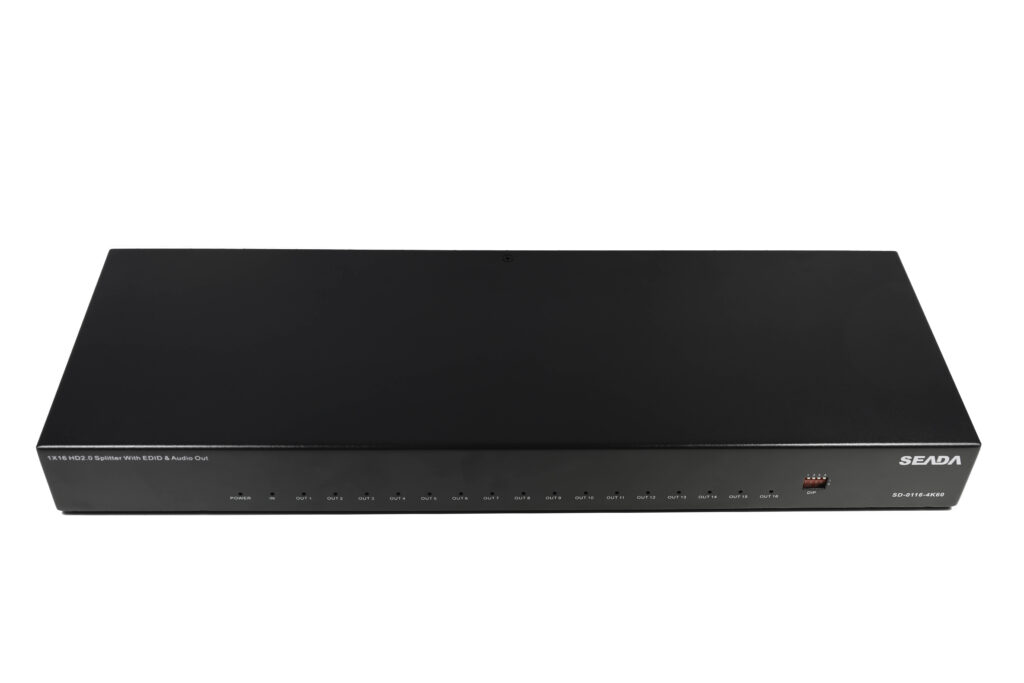

1×16 HDMI 2.0 4K60 Splitter
with Audio & Scaling & EDID management
SD-0116-4K60
This high performance 18Gbps 1×16 HDMI 2.0 Splitter, it can support 1 HDMI input to 16 HDMI outputs simultaneously. The resolution is up to 4K60Hz. It supports EDID management, auto scaling function to fix different display resolutions, also with one 3.5mm audio de-embedded function.
Key Features
- HDCP2.3 compliant
- Support video bandwidth 18 Gbps
- Video resolution is up to 4K2K@50/60Hz
- Support 3D, HDR, Dolby Vision function
- EDID management by the DIP switch settings
- Output resolution auto scaling
- Supports 3.5mm audio de-embedded
- No need to install the driver, plug and play
This high performance 18Gbps 1×16 HDMI2.0 Splitter, it can support 1 HDMI input to 16 HDMI outputs simultaneously. The resolution is up to 4K60Hz.
It supports EDID management, auto scaling function to fix different display resolutions, also with one 3.5mm audio de-embedded function.
The ON/OFF power switch provides conveniences for users to turn it ON/OFF without the power cable plugging and unplugging.
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18GBPS |
| Resolution | 4K2K 50/60Hz 4:4:4, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, HDMI 3D TV formats, All PC resolutions including 1920 x 1200 |
| 3D Support | YES |
| Colour Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Colour Depth | 8/10/12-bit |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR Formats | HDR10, HDR10+, Dolby Vision |
| ESD Protection | Human-body Model |
| Input Port connection | 1*HDMI Type A [19-pin female] |

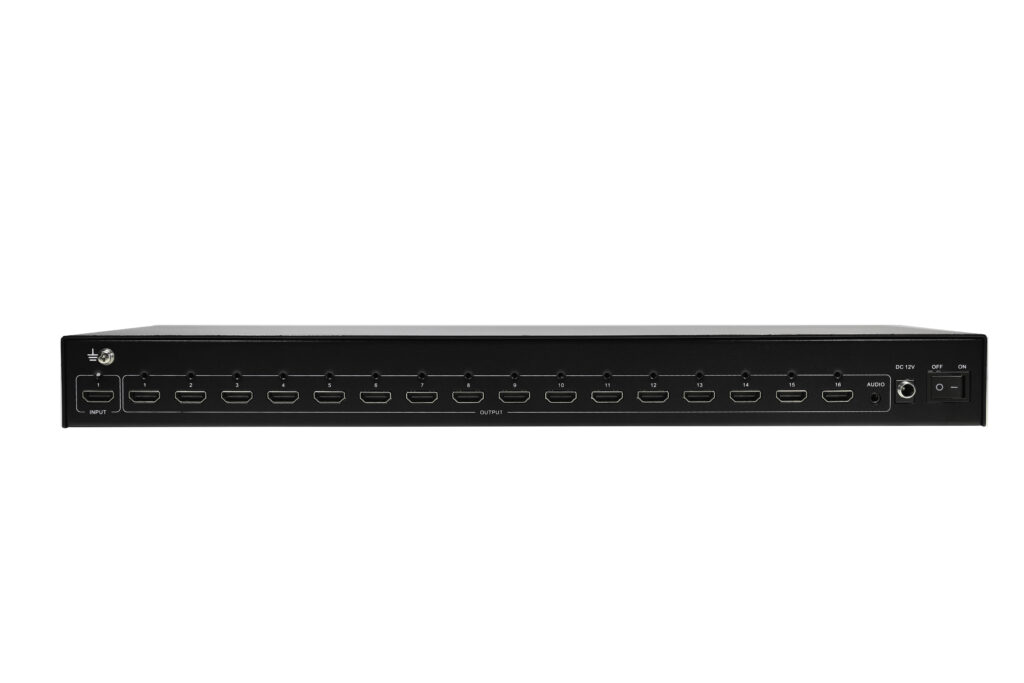

| Output Port connection | 16*HDMI Type A [19-pin female], 1*3.5mm audio |
| Dimension (mm) | 440X150X44 |
| Weight | 2.11KG |
| Power Consumption | Up to 5W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Cable length | For 4K60 (YCbCr 4:2:0)- –32ft / 10M; For 1080P—40ft/ 15m |
