SD-FHD Dual Channel Wireless Microphone System

SD-FHD

SD-FHD Dual Channel Wireless Microphone System is the perfect solution for musical performers and presenters who want to go wireless for its simplicity, but still with confidence and robust performance from the system.

Key Features

  • Rugged metal chassis with soft-touch controls.
  • Up to 80 simultaneous channels.
  • Unique button on each channel of the receiver can be used to switch to one more transmitter (either handheld or bodypack transmitter);
  • Handheld or bodypack transmitter can be switched freely for each channel.
  • True diversity provides the most effective elimination of dropouts.
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off.
  • Enhanced AF frequency range
  • Built-in spectrum analyzer to auto scan and select a clear channel.
  • Transmitter Sync.
  • Pure aluminum alloy side plate design.
  • 600 selectable frequencies, 32 preset clean channels
  • OLED display screen delivers a bright, clear viewing in day/night environments.
  • Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
  • Offers exceptional value in both performance and price, for both working musicians and sound installers.

SD-FHD Dual Channel Wireless Microphone System is the perfect solution for musical performers and presenters who want to go wireless for its simplicity, but still with confidence and robust performance from the system.

Every aspect of SD-FHD operation is managed automatically and with total reliability, allowing you to focus on your performance. With its wide range of AF range, SD-FHD can operate in 600 selectable frequencies, while also intelligently avoiding interference for reliable, dropout-free audio. Its pilot tone squelch enables eliminating of RF interference when transmitter is turned off.

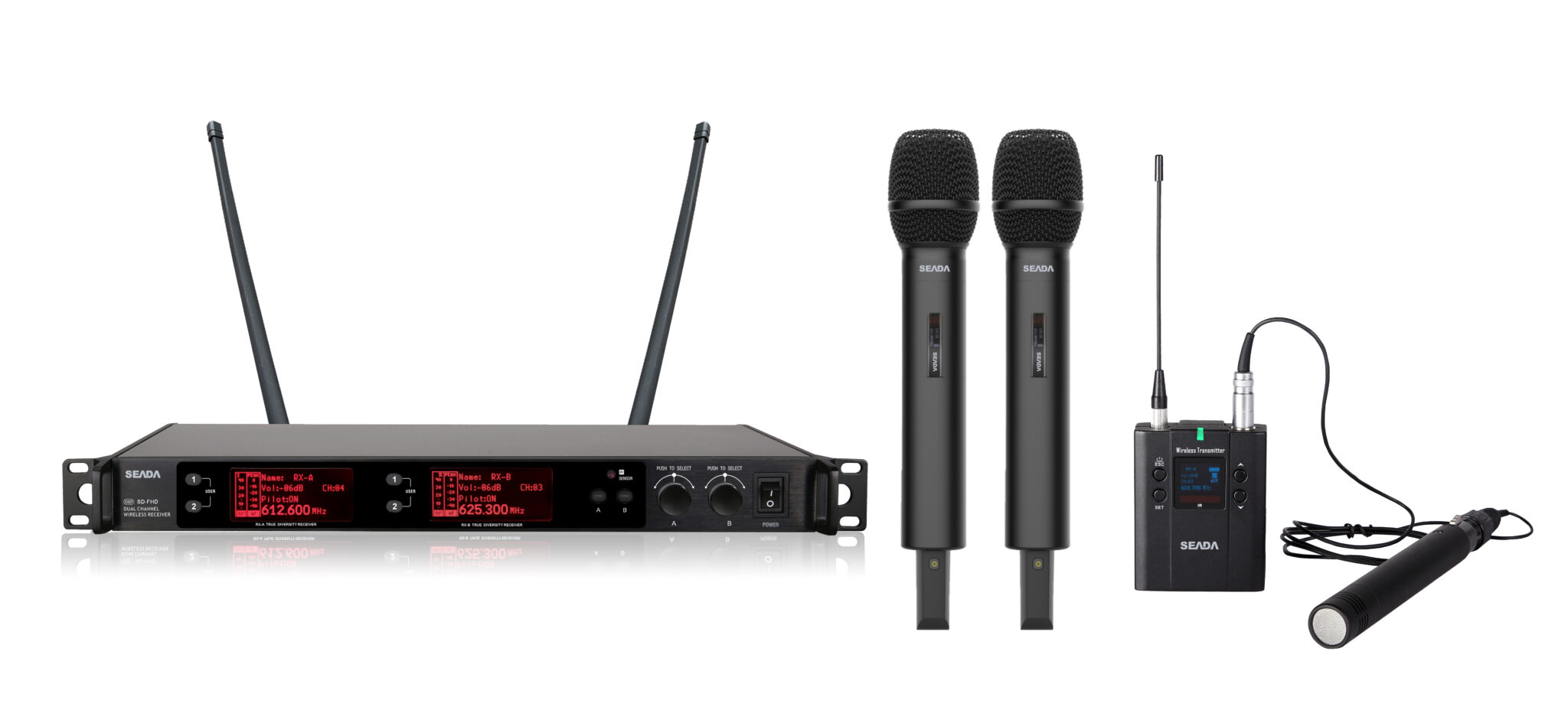

Featuring standard 19″ 1U and portable receiver options, handheld, bodypack and plug-on transmitters, and a wide selection of handheld, lavalier, headset and instrument microphone system configurations, making it perfect for applications from lecture halls to houses of worship to performance venues.

Models

SD-FHD

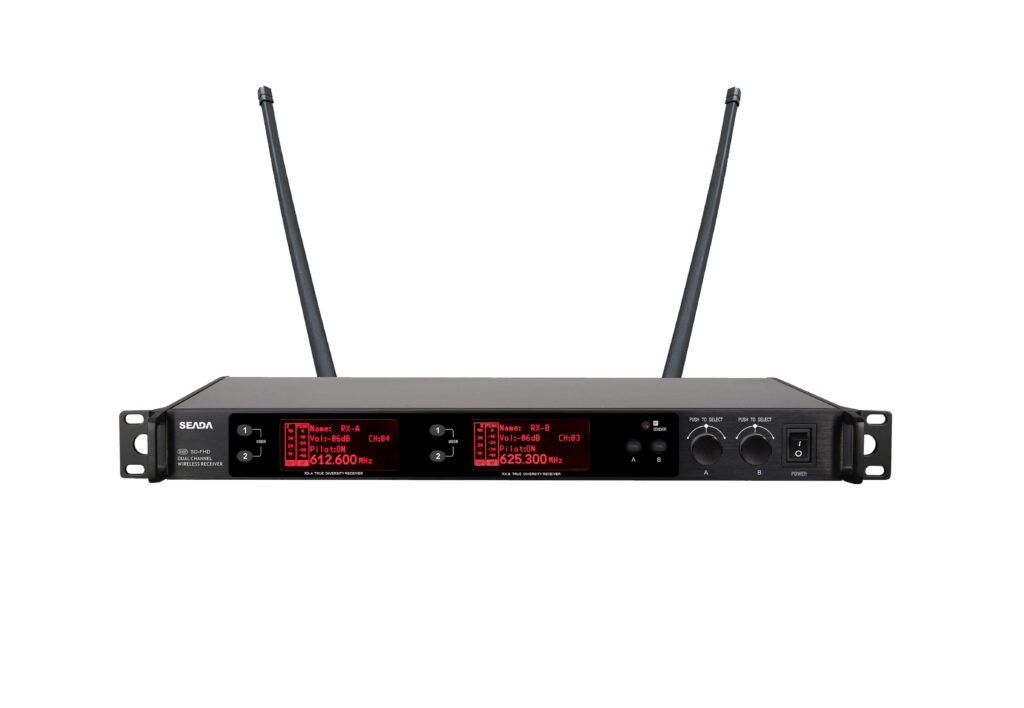

MAIN FRAME SIZE EIA-Standard 19″ 1U
CHANNELS Dual Channel
DIMENSIONS (W x H x D) 482 X 454 X 234 mm
FREQUENCY STABILITY ±0.005%, Phase Lock Loop frequency control
PRESET CHANNELS 32 PRESET  CHANNELS
OPERATING RANGE 100M typical (in open space)
OSCILLATION PLL SYNTHESIZED
SENSITIVITY 6dBμV, S/N>60dB at 25 deviation
BANDWIDTH 30MHz
MAX. DEVIATION RANGE ± 45KHz
S/N >105dB
T.H.D <0.7% @ 1KHz
FREQUENCY RESPONSE 45Hz~18KHz±1dB
SQUELCH “PiloTone & NoiseLock” dual-squelch circuit
POWER SUPPLY 100-240V AC50/60 Hz, 10W

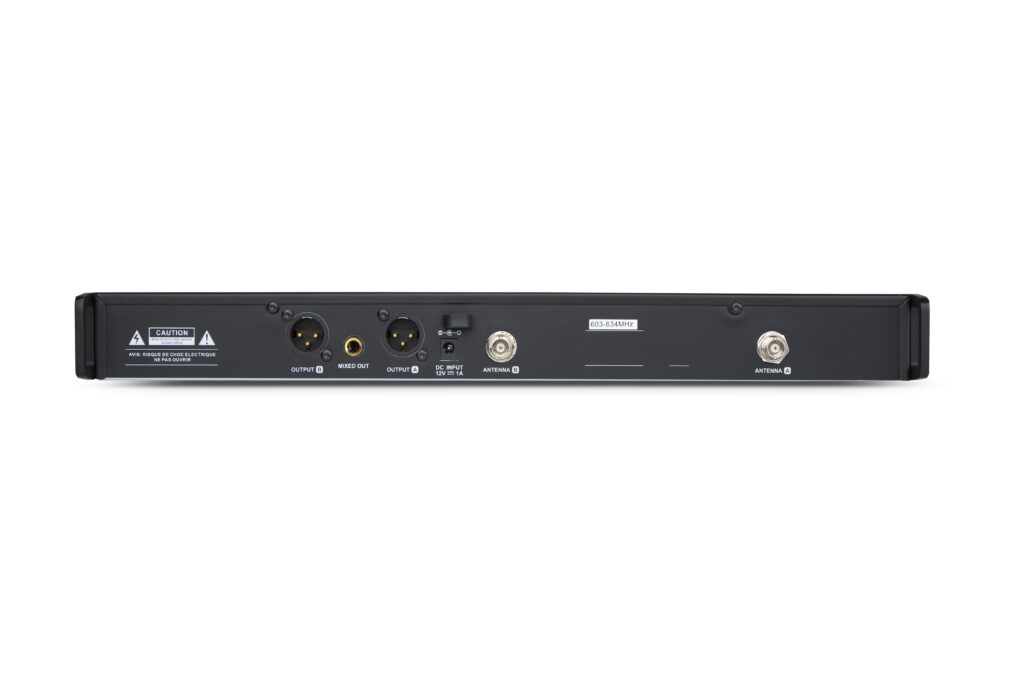

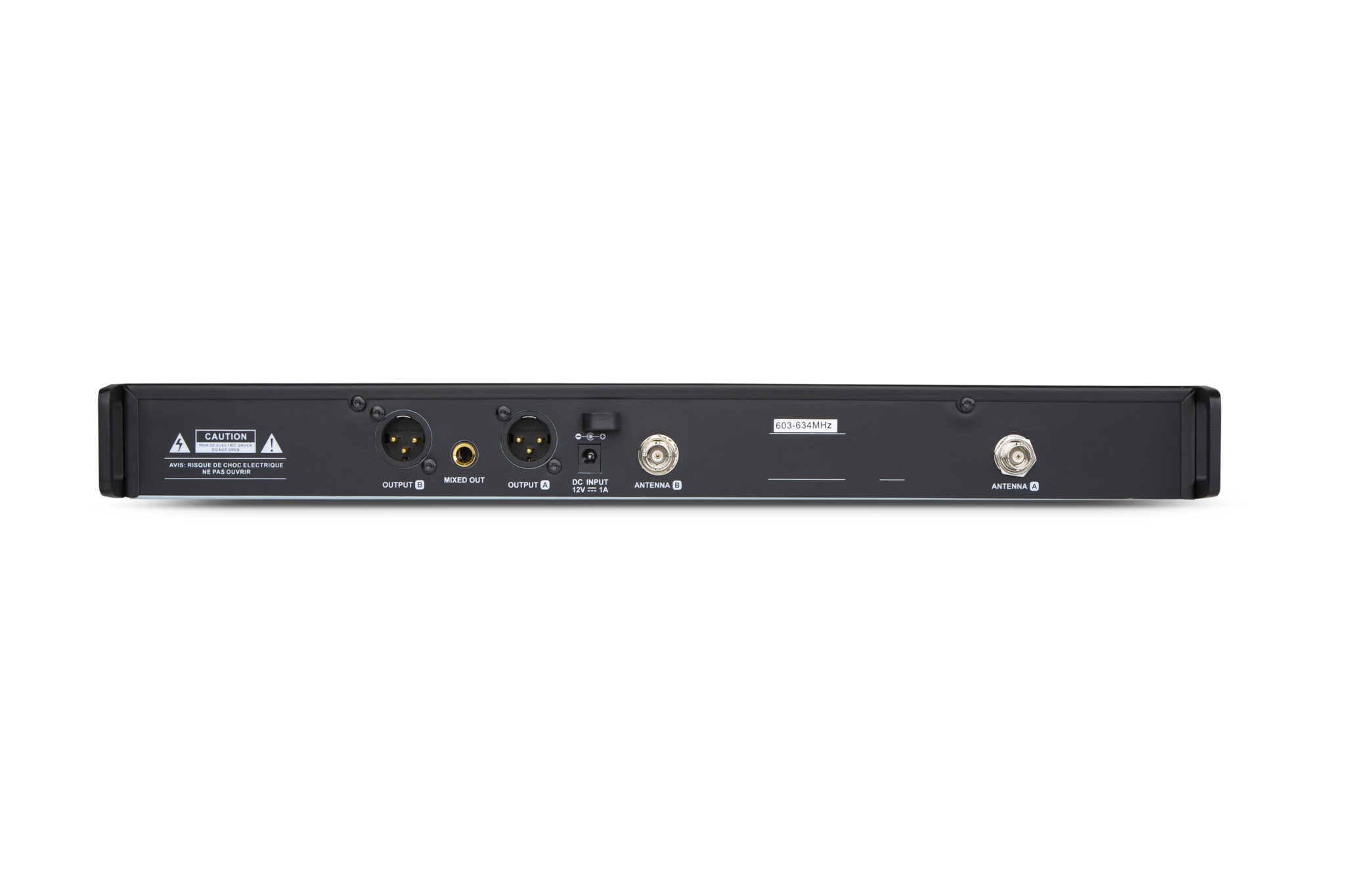

OUTPUT CONNECTOR XLR balanced & 6.3φ phone jack unbalanced
