SWM Seamless Modular Matrix Switchers

SWM Seamless Modular Matrix Switcher

SWM Seamless Modular Matrix Switcher

The SW Modular seamless series matrix switchers offer advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis.

Key Features

  • Advanced Crossbar technology
  • Seamless switching
  • Supports [email protected] input and output
  • Supports audio
  • Supports OSD on output windows
  • Supports individual screen customised video setting
  • No PC vulnerabilities
  • Multi output option: DVI, HDMI, HDBaseT, SDI, VGA
  • Low power consumption
  • Support video wall feature
  • Multi input option: DVI, HDMI, VGA, SDI, HDBaseT
  • HDCP compliant
  • Supports customised EDID on inputs and outputs
  • Supports customised pre-set layout

The SW Modular seamless series matrix switchers offer advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis

The SW matrix switcher allows users to independently switch and route video and audio content directly to various monitors displays projectors and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless real-time switching.

The SW matrix switchers are also able to offer extremely fast start-up performance and a working environment free of viruses and software conflicts, ensuring 24/7 hassle free operational ability.

Controller Chassis 19” ANST/EIA RS-310C standard industrial chassis
Input Channel Up to 80 inputs
Input Format DVI/HDMI/VGA, SDI, SD, HDBaseT
Output Channel Up to 80 outputs
Output Format DVI/HDMI/VGA, SDI,SD, HDBaseT
HDCP support YES
POWER SUPPLY RPSU
Input Voltage AC 110V to 240V, 50/60Hz
Operation system Windows 7/8/10
Warranty 2 Years
Operating temperature range 0~40 degrees centigrade
Operating humidity range 10%-90%
Storage temperature range 0~60 degrees centigrade
Storage humidity range 10%~90%
Control Interface RS232 or 10/100/1000M Ethernet Port
Models Chassis Dimension (mm) (W*D*H) Max Input Max Output

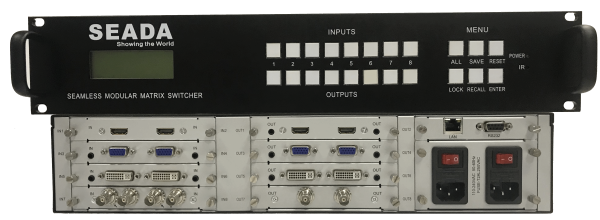

SWM08 2U 482*380*88 8 8
SWM16 4U 482*380*175 16 16
SWM36 8U 482*380*353 36 36
SWM80 16U 482*380*708 80 80
