SD-MV 5×1 Multi-Viewer
SD-MV-0501 Multiviewers

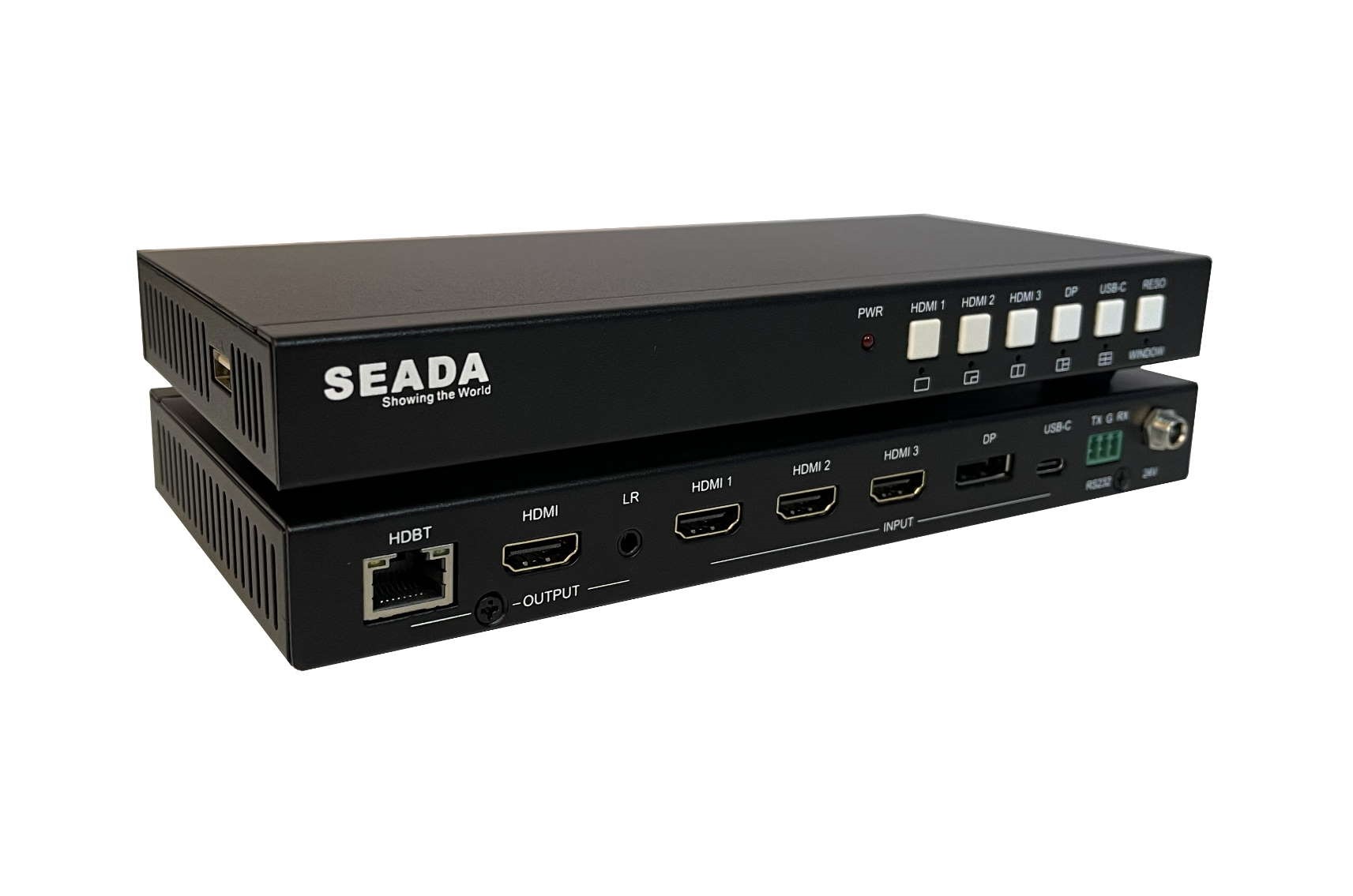

SD-MV-0501 is a HDMI 2.0, DP 1.2 and USB C Seamless Video Switcher with Multiview function. It supports 3x HDMI, 1x DP and 1x USB C (video only) inputs, one HDMI and one HDBaseT video mirror output which can send audio & video source onto a CAT cable up to 70 meters.
Key Features
- Seamless switching on single display window mode
- Support 5 Multiview display modes
- Support both HDMI and HDBaseT outputs
- Support HDMI 2.0, DP 1.2 & USB C inputs
- Support up and down scaling at output with multiple resolution options
- Support output resolution up to 4096x2160P@60Hz
- Extensive EDID and HDCP control
- HDBaseT transmission length up to 70m @1080p, or 40m @4K
- Support PCM and bitstream audio format up to 5.1 channel
- Audio extraction, 3.5mm L/R output
- Provide 24V/10watt PoC for HDBaseT receiver
- Auto-switching at single window mode
SD-MV-0501 is a HDMI 2.0, DP 1.2 and USB C Seamless Video Switcher with Multiview function. It supports 3x HDMI, 1x DP and 1x USB C (video only) inputs, one HDMI and one HDBaseT video mirror output which can send audio & video source onto a CAT cable up to 70 meters.
SD-MV-0501 not only supports the embedded audio on output, but also supports de-embedded audio via the 3.5mm audio jack.
SD-MV-0501 is extremely flexible and seamless switching capable multiviewer making it perfect for applications such as broadcasting, security, boardroom, TV studio and so on.

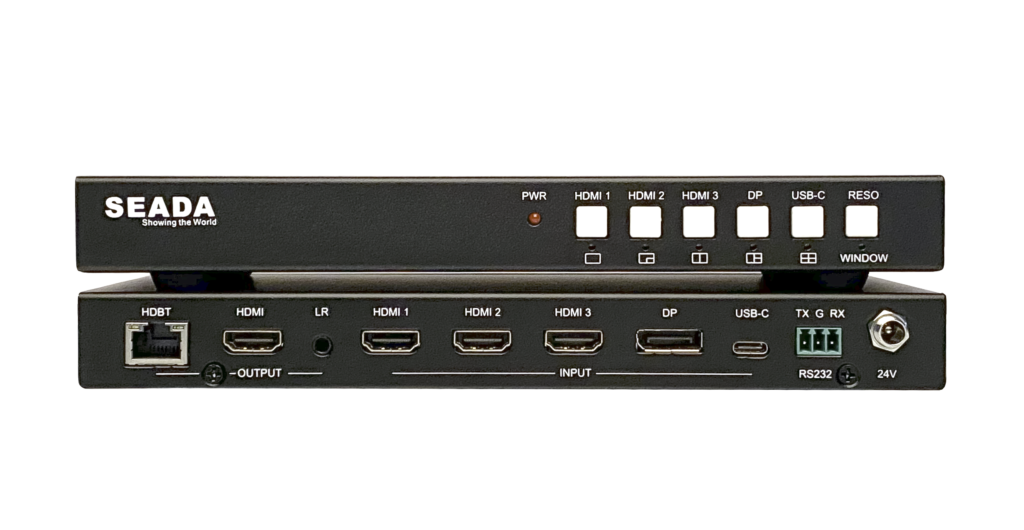

Control is quick and comprehensiveonSD-MV-0501, it can be controlled using buttons at the front panel or RS232 commands.
| Dimension | L225 x W100 x H25 mm |
|---|---|
| Net Weight | 0.75kg |
| Video Input | 3 x HDMI, 1 x DP, 1 x Type-c |
| Input Resolution | Up to 4K@60Hz |
| Video Output | 1 x HDMI, 1 x HDBaseT |
| HDMI Output Resolution | Up to 4K@60Hz |
| HDMI Standard | HDMI 2.0 |
| HDCP Version | Up to HDCP 2.2 |
| Audio Out | 1 x Audio Out |
| Audio Out Connector | 1 x 3.5mm mini jack |
| Controls | 1 x RS232 |
| Power Supply Input Voltage | Input: AC 100~240V, 50/60Hz; Output: 24V DC 1A |
| Power Consumption | 14W (max) |
| Operating Temperature Range | 0°C ~ 40°C centigrade |
| Operating Humidity Range | 10%~90%non-condensing |
| Storage Temperature Range | -20°C ~ 60 degrees centigrade |
| Storage Humidity Range | 10%~90% non-condensing |
