SD-0501

SD-0501 Presentation Switcher

SD-0501

The SD-0501 is a powerful seamless 4K presentation switcher with multiview function. It can take up to 5 video inputs with up to 4K resolution at different formats (HDMI, DP, VGA, USB-C) and then display it onto a display with resolution up to 4K. It not only can seamlessly switch between different video inputs onto the screen but also can display selected video inputs onto the screen at a preset multiview mode.

Key Features

  • 4K 5×2 presentation switcher with multiview ability
  • Supports seamless switching
  • Supports transition effect during switching
  • Supports video source auto or manual switching
  • Supports different format inputs
  • 2 x HDMI, 1 x DP, 1 x USB-C, 1 x VGA with analog audio input
  • Supports up to 4K on digital inputs and 1080P on VGA input
  • 1 x HDBaseT and 1 mirrored HDMI output
  • Supports scaling on outputs
  • Supports up to 4K on both HDBaseT and HDMI ports
  • Supports up to 40m and 70m transmission distance on 4K and HD signal respectively over HDBaseT output
  • HDBaseT output supports 24V PoC
  • Supports audio embedded and de-embedded
  • Supports independently audio switching
  • Supports audio mixing
  • Supports Mic/line input with Phantom Power
  • Supports volume control for Mic audio input
  • Supports volume control for audio of video source
  • Supports controllable via network, RS232, remote control and front panel buttons
  • HDCP compliant

The SD-0501 is a powerful seamless 4K presentation switcher with multiview function. It can take up to 5 video inputs with up to 4K resolution at different formats (HDMI, DP, VGA, USB-C) and then display it onto a display with resolution up to 4K. It not only can seamlessly switch between different video inputs onto the screen but also can display selected video inputs onto the screen at a preset multiview mode.

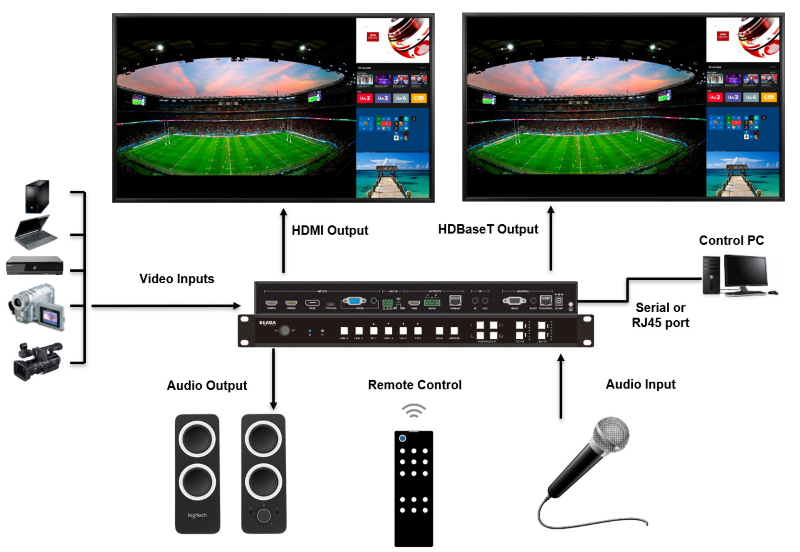

The SD-0501 presentation switcher supports deembedded input audios and embed any external audio onto the selected outputs, with line or microphone audio inputs. Scaled video signals are available as HDMI or HDBaseT for a long-distance transmission. This makes the SD-0501 a great solution for a wide number of applications including classrooms, lecture halls, broadcasting, meeting and conference rooms.

The SD-0501 presentation switcher can be easily controlled via web GUI, front panel buttons, RS232, IR or a 3rd party controller which offers the greatly controlling flexibility. SD-0501 switchers can run standalone once configured.

Dimensions(W*D*H) (mm) 480mm x 215mm x 44.55mm 1U
Weight 1.5kg
Input Resolution Up to 4K
Input Format HDMI, DP, USB-C, VGA
Output Resolution Up to 4K
IR Port 3.5mm Jack
Analog Audio Output Interface 5-way Phoenix connectors
Analog Audio Input Interface 3-way Phoenix connector and 3.5mm jack
Power Supply DC 24V 3A
Operating Temperature Range 0~40 degrees centigrade
Operating Humidity Range 10%-90% non-condensing
Storage Temperature Range 10%-90% non-condensing
Storage Humidity Range 10%~90% non-condensing
Control Interface Ethernet port or RS232 or front panel or remote control
Max Power Consumption 30W
Warranty 2 Years
