SP-H18B HDMI Splitter

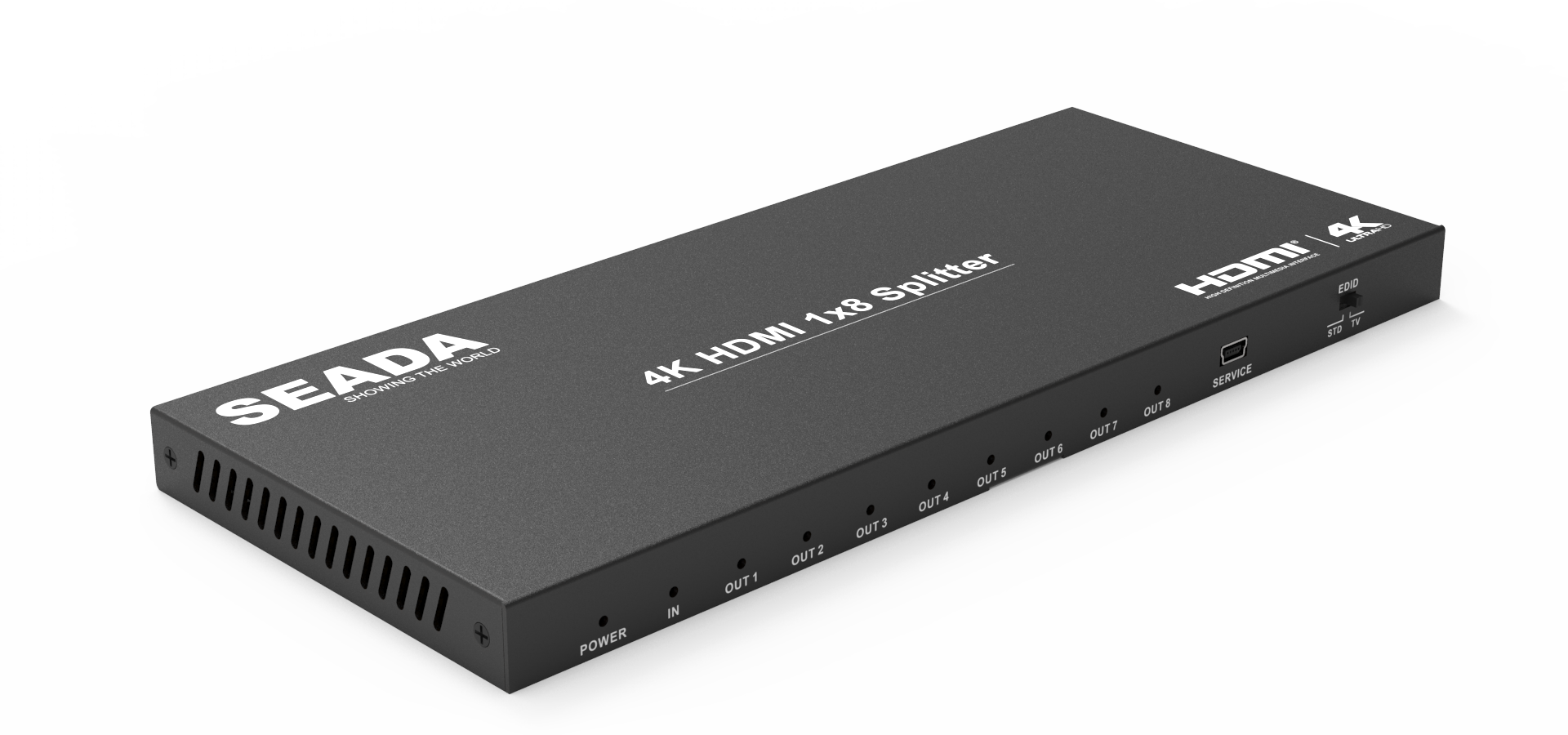

SP-H18B 18Gbps 1×8 HDMI Splitter

SP_H18B6

SP-H18B 18Gbps 1×8 HDMI Splitter

18Gbps 1×8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to [email protected] 4:4:4. It can be set the COPY/ AUTO EDID configuration.

Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Key Features

  • HDMI 2.0b, HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to [email protected] 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialling the dip switch
  • Compact design for easy and flexible installation

18Gbps 1×8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to [email protected] 4:4:4. It can be set the COPY/ AUTO EDID configuration.

Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

This product contains sensitive electri­cal components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

TECHNICAL
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz/18Gbps
Video Resolutions 480i ~1080p50/60Hz, [email protected]/30Hz, [email protected]
HDMI Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1,

Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio,

Dolby Atmos and DTS:X

ESD Protection Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

CONNECTIONS
Input Ports 1×HDMI Type A (19-pin female)

1×SERVICE (Micro USB, Update port)

Output Ports 8×HDMI Type A (19-pin female)
mechanical
Housing Metal Enclosure
Silkscreen Color Black
Dimensions 243mm (W) × 102mm (D) × 16mm (H)
Weight 572g
Power Supply Input: AC100 – 240V 50/60Hz, Output: DC 12V/1A

(US/EU standards, CE/FCC/UL certified)

Power Consumption 6.15W
Operation Temperature -10°C ~ 50°C / 14°F ~ 122°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
